Autoa WeldProtect
Welding Safety Curtains Built For Protection.
WeldProtect retractable welding safety curtains are built for fabrication shops that can’t compromise on safety or productivity. Heavy duty European PVC construction shields your team from arc flash, UV, and spatter, while the retractable design keeps your workflow moving.
Available in five configurations from 1550 mm to 3250 mm wide, with compatible posts sold separately.
| Code | Height | Max Width (A) | Retracted (B) | Extension (C) | Main Flaps | Ext Flaps |
|---|---|---|---|---|---|---|
| WPC.1550 | 2200 mm | 1550 mm | 1050 mm | 500 mm | 4 | 2 |
| WPC.2000 | 2200 mm | 2000 mm | 1300 mm | 700 mm | 5 | 3 |
| WPC.2300 | 2200 mm | 2300 mm | 1550 mm | 750 mm | 6 | 3 |
| WPC.2800 | 2200 mm | 2800 mm | 1775 mm | 1025 mm | 7 | 4 |
| WPC.3250 | 2200 mm | 3250 mm | 2050 mm | 1200 mm | 8 | 5 |

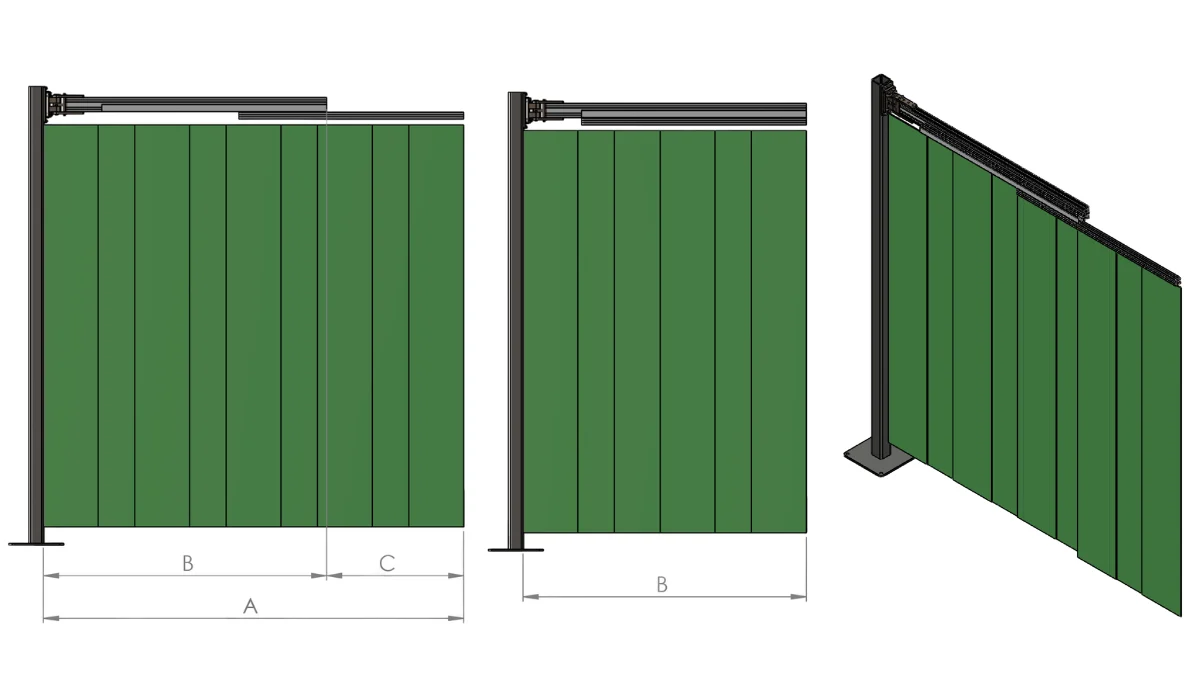

Understanding Your WeldProtect Dimensions.
WeldProtect curtains are designed to extend and retract to suit your bay layout.
- Max Width (A) is the full extended width of the curtain.
- Retracted (B) is the width when the curtain is pushed back to its most compact position.
- Extension (C) is the additional travel beyond the retracted position.
Before ordering, check all three dimensions against your available bay space to make sure you select the right configuration.

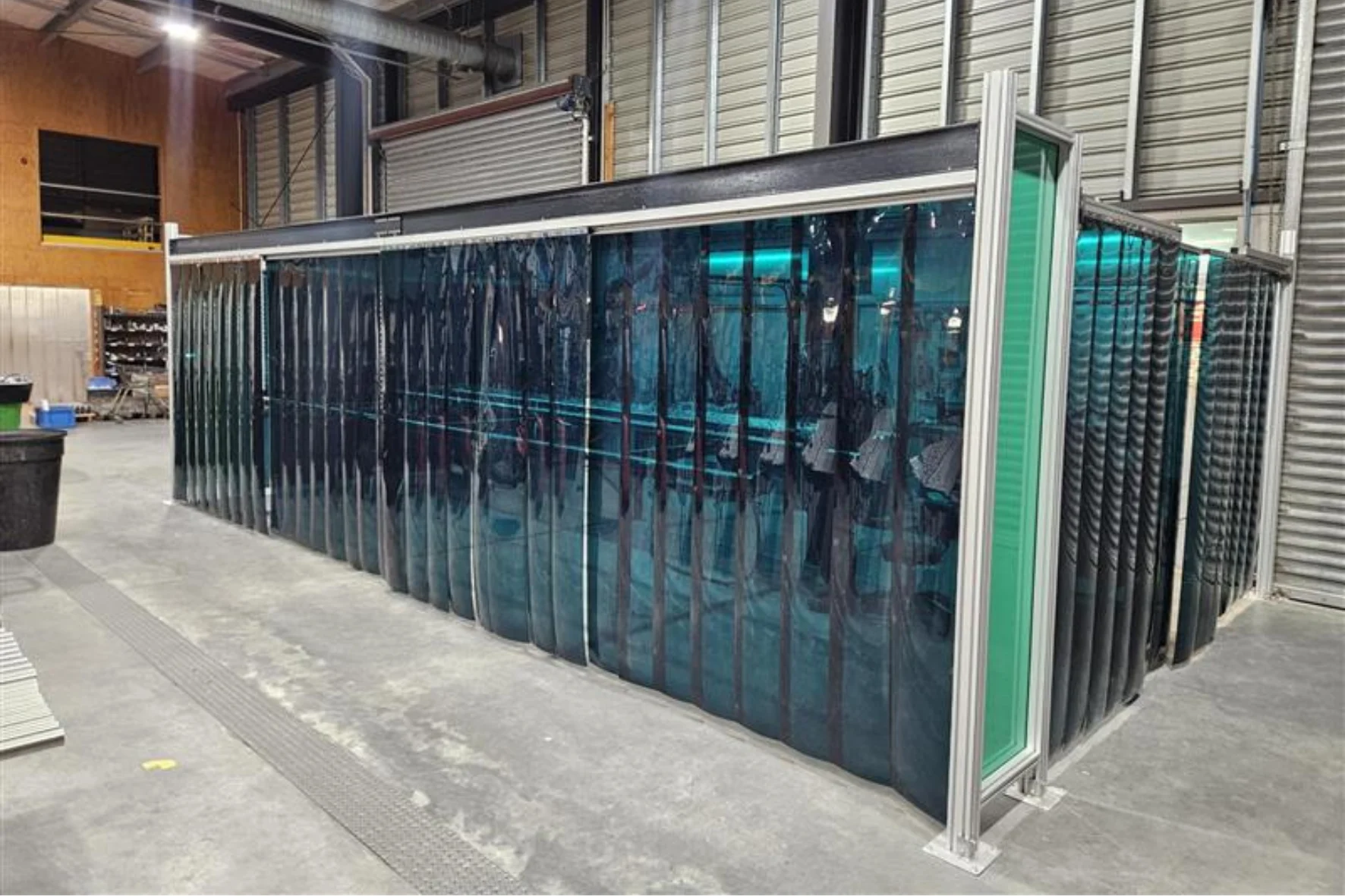

Autoa WeldProtect Welding Curtains Fully Extended.

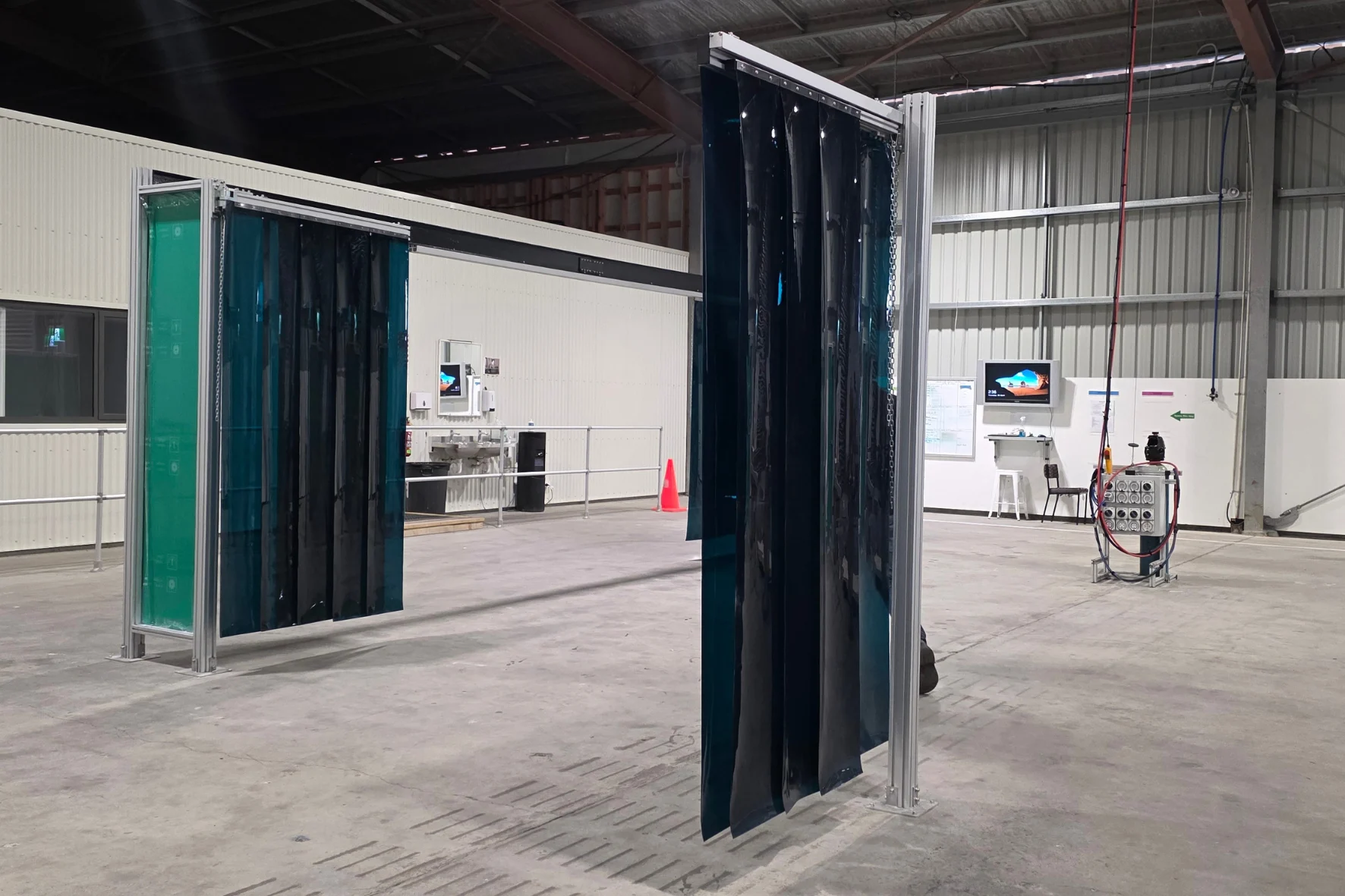

Autoa WeldProtect Welding Curtains Open.

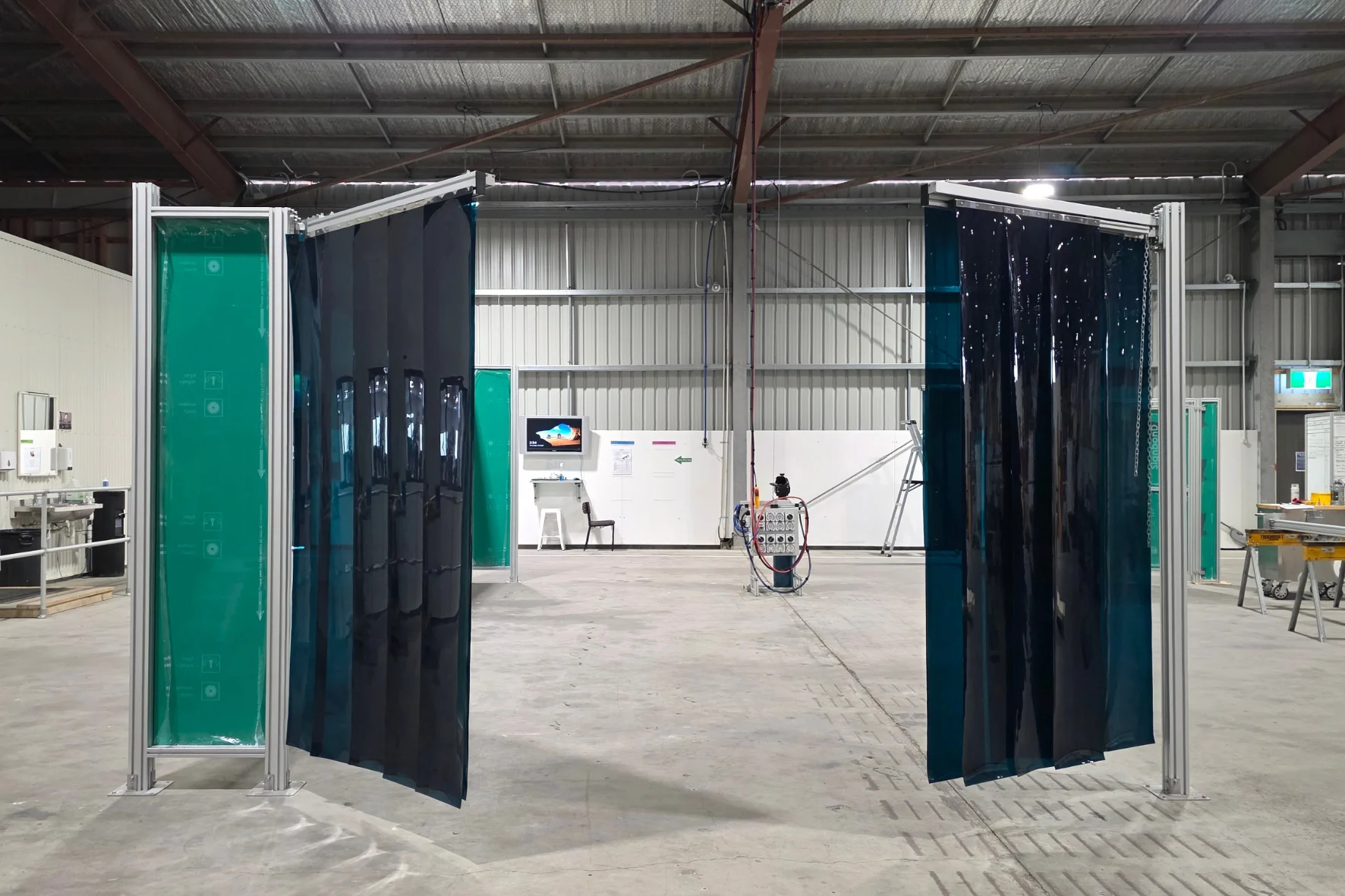

Autoa WeldProtect Welding Curtains Half Open.
Download the WeldProtect Specification Sheets.
Compatible Posts For Every Configuration.
WeldProtect posts are sold separately and are available in two options to suit your curtain configuration.
The standard post is compatible with WPC.1550 and WPC.2000 curtains.
The heavy duty post suits the larger WPC.2300, WPC.2800, and WPC.3250 configurations.
Both posts are 2500 mm in height.
| Code | Description | Height | Compatible With |
|---|---|---|---|
| WPP.STD | Standard | 2500 mm | WPC.1550 WPC.2000 |
| WPP.HD | Heavy Duty | 2500 mm | WPC.2300 WPC.2800 WPC.3250 |
Contact Us
Keep Your Team Protected With WeldProtect.
Talk to the team about WeldProtect welding safety curtains and we will help you find the right configuration to protect your staff from arc flash, UV, and spatter.
