Autoa-CoWeld Dual Station

Collaborative Welding, Configured Your Way.

The highest-capacity configuration in the range, built for continuous production.

The OTC FD-VC8 robot arm works across two Autoa WeldBase tables in addition to its own weld station, so one table can be loaded while the robot welds at the other, minimising downtime between cycles.

Ideal for high-mix, high-volume workshops that need maximum throughput from a single cobot cell.

How The Autoa-CoWeld Dual Station Works.

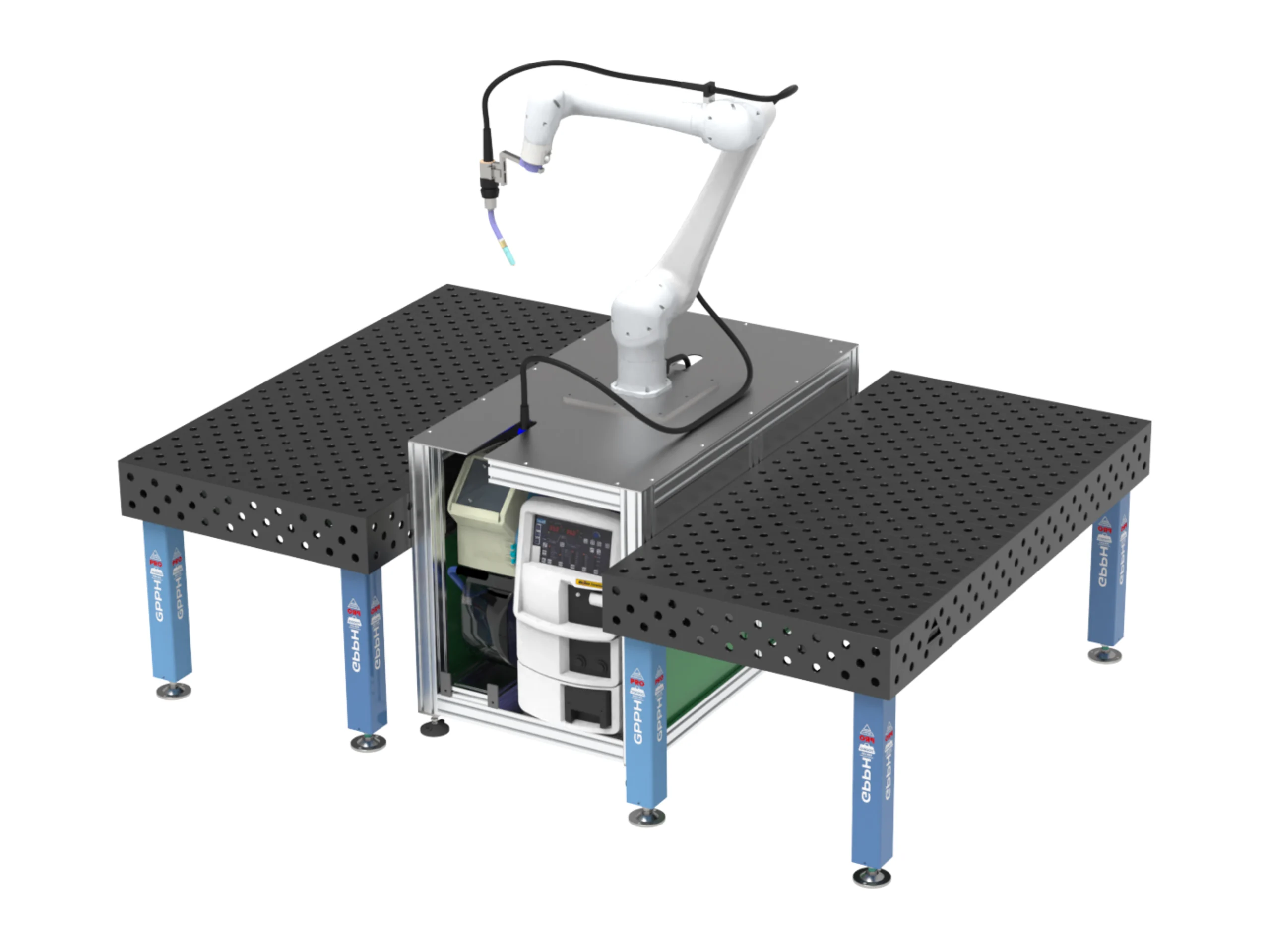

The Autoa-CoWeld Dual Station gives one OTC FD-VC8 cobot three places to weld: its own 880 x 1500 mm weld station and two Autoa WeldBase tables, each 2000 x 1000 mm. While the robot welds at one table, your operator unloads and reloads the other. The robot spends more of the shift welding, and your operator spends less of it waiting. It is the highest-capacity configuration in the Autoa-CoWeld range.

Built For High-Mix, High-Volume Workshops.

Use the two WeldBase tables for larger parts and repeat batches. Use the weld station for small parts and one-offs. Add the optional castors if you want to move the station around the workshop. The cell runs an OTC P502L welding power source, an OTC RT3500L air cooled torch and an OTC CM Series integrated wire feeder. Add the Autoa ClearArc on-gun fume extraction torch to capture fume at the source.

Three Ways To Program.

Pick the method that suits the job. Teach simple parts with drag and drop teaching. Build programs step by step with block teaching. For larger or more varied work, AutoaWeld software automates the robot programming for you. See the Autoa-CoWeld collaborative robot welder, or browse all of our robotic welding solutions.

Autoa-CoWeld Dual Station.

Download Specifications Sheet

Robot
OTC FD-VC8 Collaborative Robot Arm


Power Source
OTC P502L Welding Power Source


Welding Torch & Wire Feeder
OTC RT3500L Air Cooled Welding Torch
Autoa ClearArc On-Gun Fume Extraction Torch (optional)
OTC CM Series Integrated Wire Feeder


Table
Autoa Weld Station 880x1500mm
2x Autoa WeldBase Welding Table 2000x1000mm
Castors/Wheels Mobile Station (optional)


Programming

Drag and Drop Teaching
Intuitive Block Teaching
AutoaWeld Software

Autoa-CoWeld Dual Station Frequently Asked Questions.

An OTC FD-VC8 collaborative robot arm, OTC P502L welding power source, OTC RT3500L torch, OTC CM Series wire feeder, one Autoa weld station and two Autoa WeldBase welding tables.

Yes. Autoa delivers the cell fully configured, so installation and setup are quick.

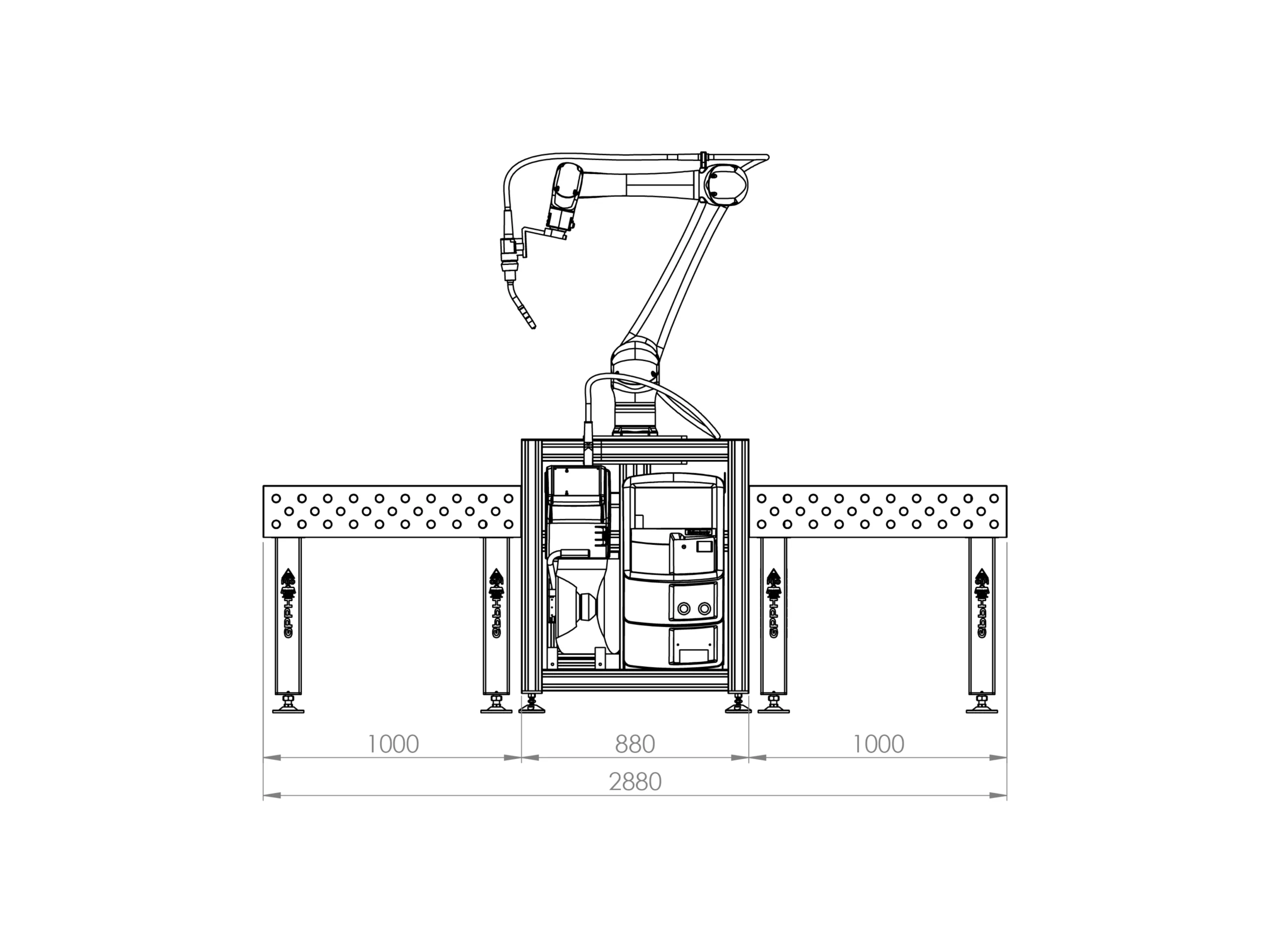

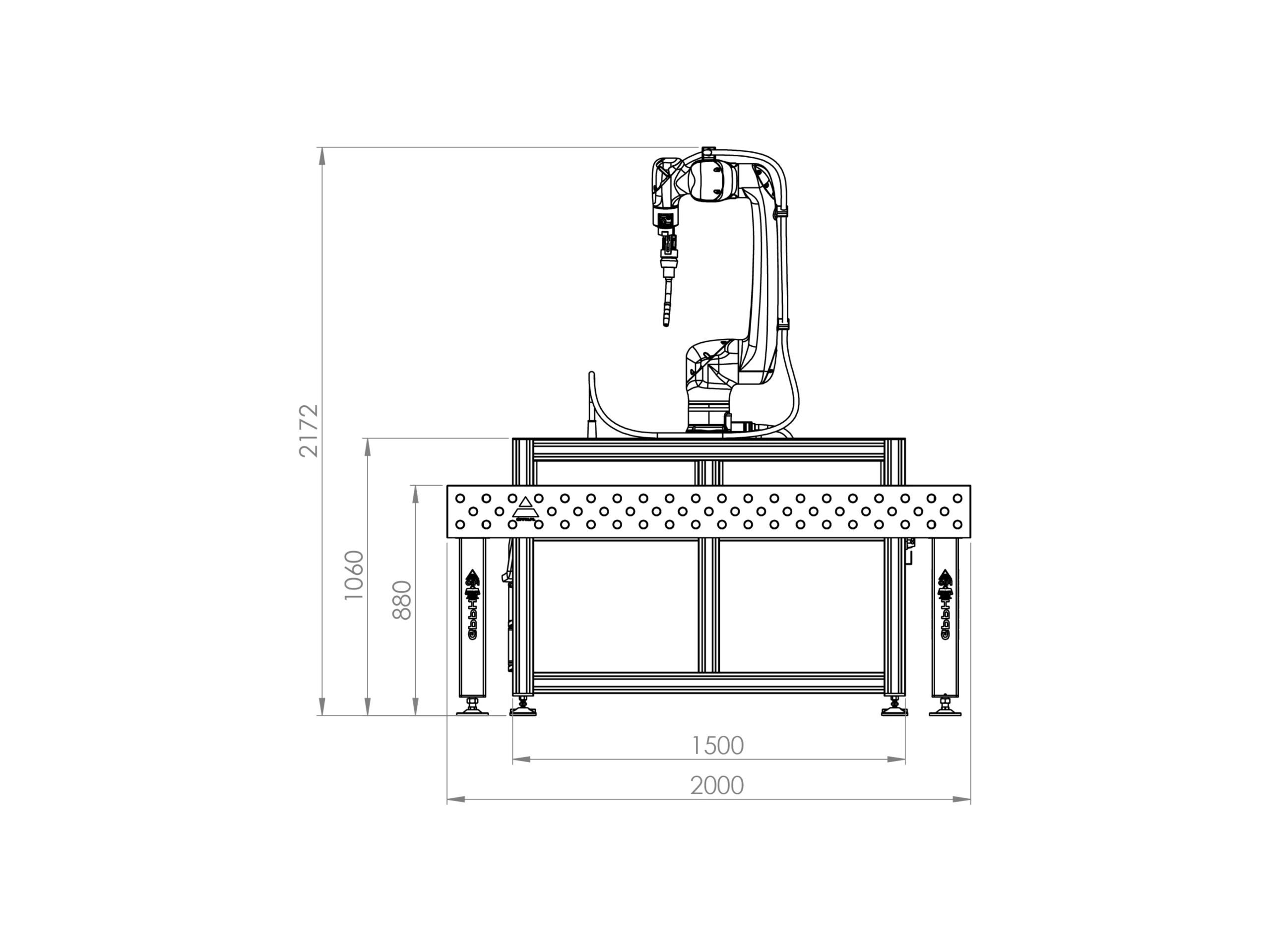

The weld station measures 880 x 1500 mm and each WeldBase table measures 2000 x 1000 mm. Download the specifications sheet for the full cell footprint.

Yes. The Autoa ClearArc on-gun fume extraction torch is available as an option.

It is the highest-capacity configuration in the range. Two WeldBase tables let you load one while the robot welds at the other.

Operators learn quickly. Drag and drop teaching and block teaching are both visual. More questions? Read our frequently asked questions.
