Autoa-CoWeld Compact

Collaborative Welding, Configured Your Way.

The smallest footprint in the Autoa-CoWeld range, built for workshops with limited space or lower-volume production.

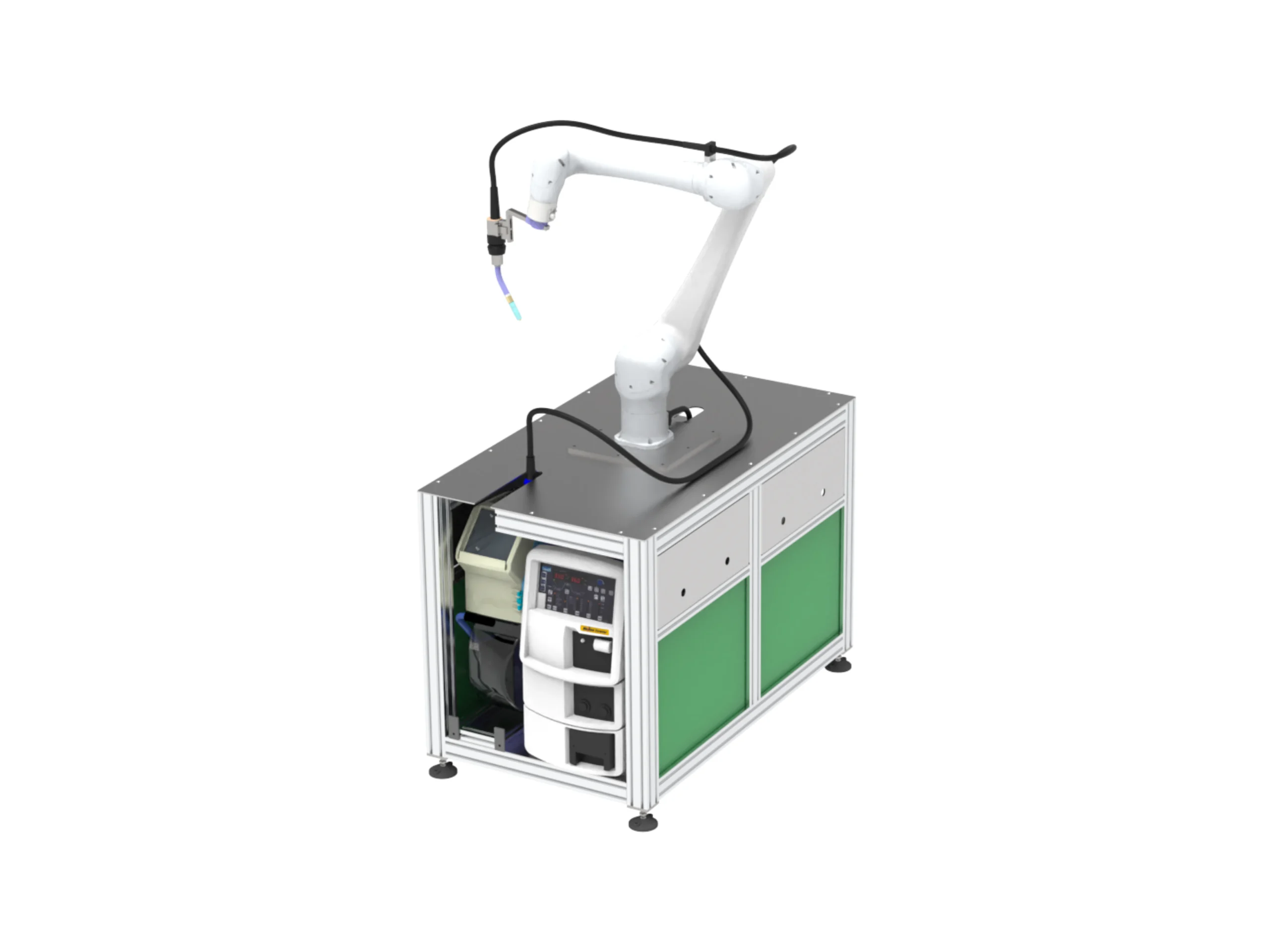

The OTC FD-VC8 collaborative robot arm sits on a weld station, ready to install and easy to relocate wherever your workshop needs it.

A practical entry point into cobot welding, ideal for one-off parts or frequent job changeovers.

How The Autoa-CoWeld Compact Works.

The Autoa-CoWeld Compact puts an OTC FD-VC8 cobot on a single 880 x 1500 mm Autoa weld station. The robot, welding power source, wire feeder and torch arrive as one cell, ready to install. It is the smallest configuration in the Autoa-CoWeld range, so it fits where a larger cell will not.

Built For Small Workshops And Short Runs.

Choose the Compact when floor space is tight or your volumes are low. It suits one-off parts and jobs that change often. It is also a practical first step into cobot welding. Add the optional castors and you can move the station to wherever the work is.

What Is In The Cell.

The Compact uses the same welding package as the larger Autoa-CoWeld cells: an OTC P502L welding power source, an OTC RT3500L air cooled torch and an OTC CM Series integrated wire feeder. The Autoa ClearArc on-gun fume extraction torch is available as an option.

Need More Table Space?

The Autoa-CoWeld Single Station adds one Autoa WeldBase table for dedicated part loading. The Autoa-CoWeld Dual Station adds two, so one table can be loaded while the robot welds at the other.

Three Ways To Program.

Program the Compact in the way that suits the part. Drag and drop teaching handles simple parts. Block teaching builds a program one step at a time. AutoaWeld software automates the robot programming for you. See the Autoa-CoWeld collaborative robot welder, or browse all of our robotic welding solutions.

Autoa-CoWeld Compact.

Download Specifications Sheet

Robot
OTC FD-VC8 Collaborative Robot Arm


Power Source
OTC P502L Welding Power Source


Welding Torch & Wire Feeder
OTC RT3500L Air Cooled Welding Torch
Autoa ClearArc On-Gun Fume Extraction Torch (optional)
OTC CM Series Integrated Wire Feeder


Table
Autoa Weld Station 880x1500mm
Castors/Wheels Mobile Station (optional)


Programming

Drag and Drop Teaching
Intuitive Block Teaching
AutoaWeld Software

Autoa-CoWeld Compact Frequently Asked Questions.

An OTC FD-VC8 collaborative robot arm, OTC P502L welding power source, OTC RT3500L torch, OTC CM Series wire feeder and one Autoa weld station.

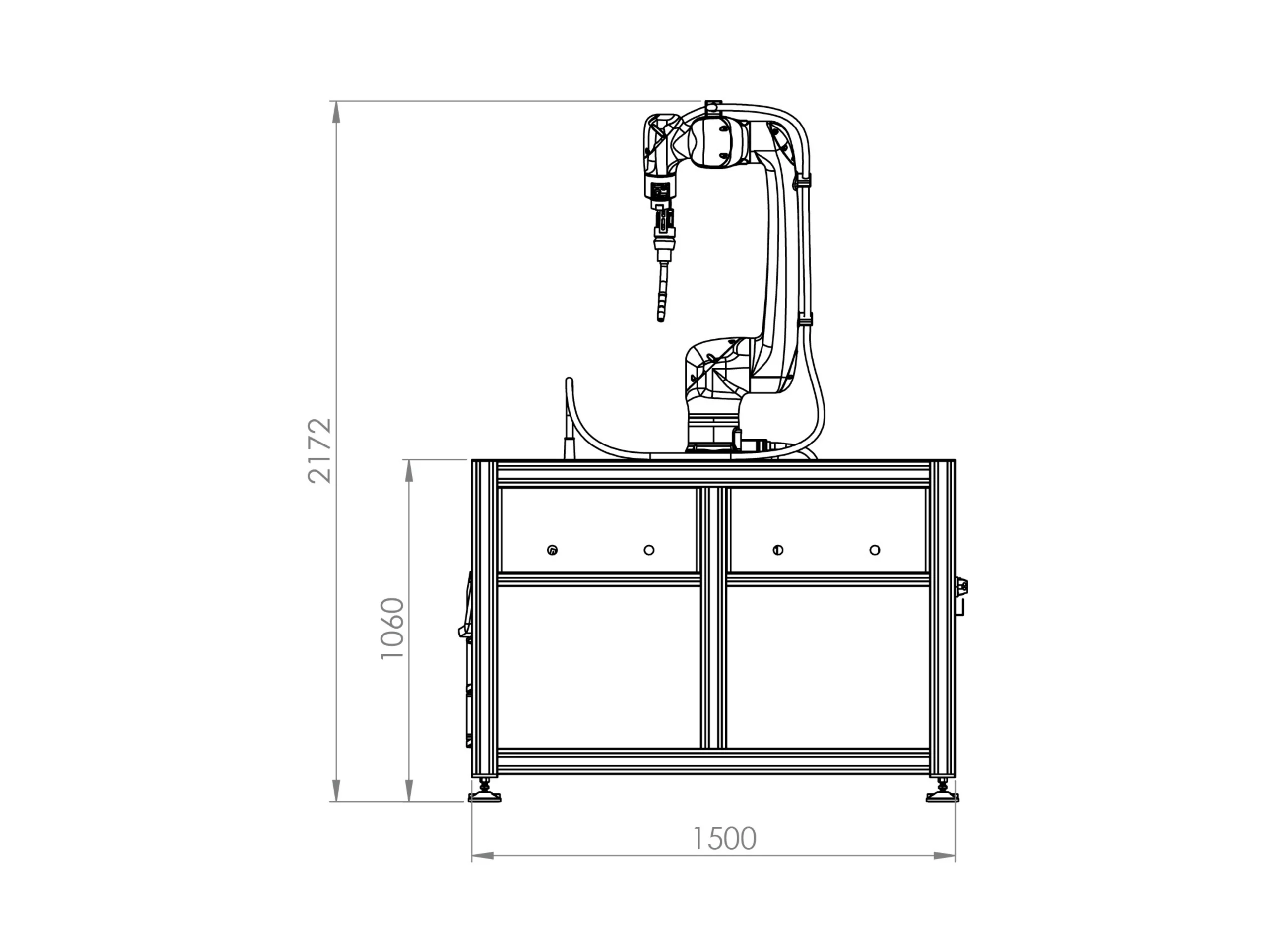

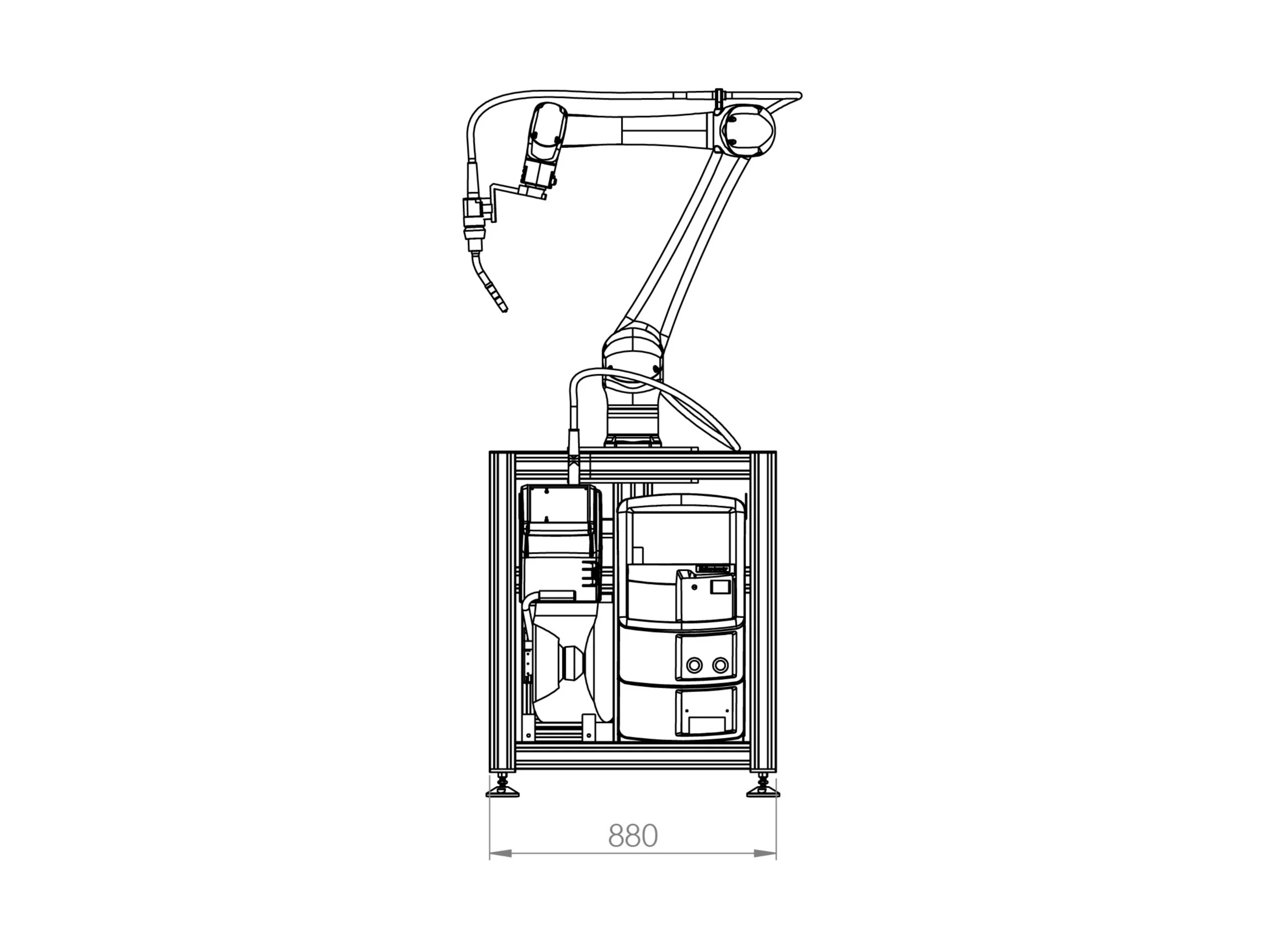

The weld station measures 880 x 1500 mm. Download the specifications sheet for the full cell dimensions.

Yes. The station is easy to relocate, and Autoa offers optional castors to make it mobile.

Yes. Autoa delivers it fully configured with everything you need to start welding.

Yes. The Autoa ClearArc on-gun fume extraction torch is available as an option.

Yes. It is the entry point to the Autoa-CoWeld range, and operators learn quickly with visual programming. More questions? Read our frequently asked questions.
