Autoa-CoWeld Single Station

Collaborative Welding, Configured Your Way.

A versatile mid-range setup for workshops that need dedicated part capacity beyond the robot’s own station.

The OTC FD-VC8 robot arm works from its weld station alongside one Autoa WeldBase table, giving operators a dedicated space to load and unload parts.

Ideal for growing production volumes, larger parts, or teams wanting continuous welding while an operator preps the next job.

How The Autoa-CoWeld Single Station Works.

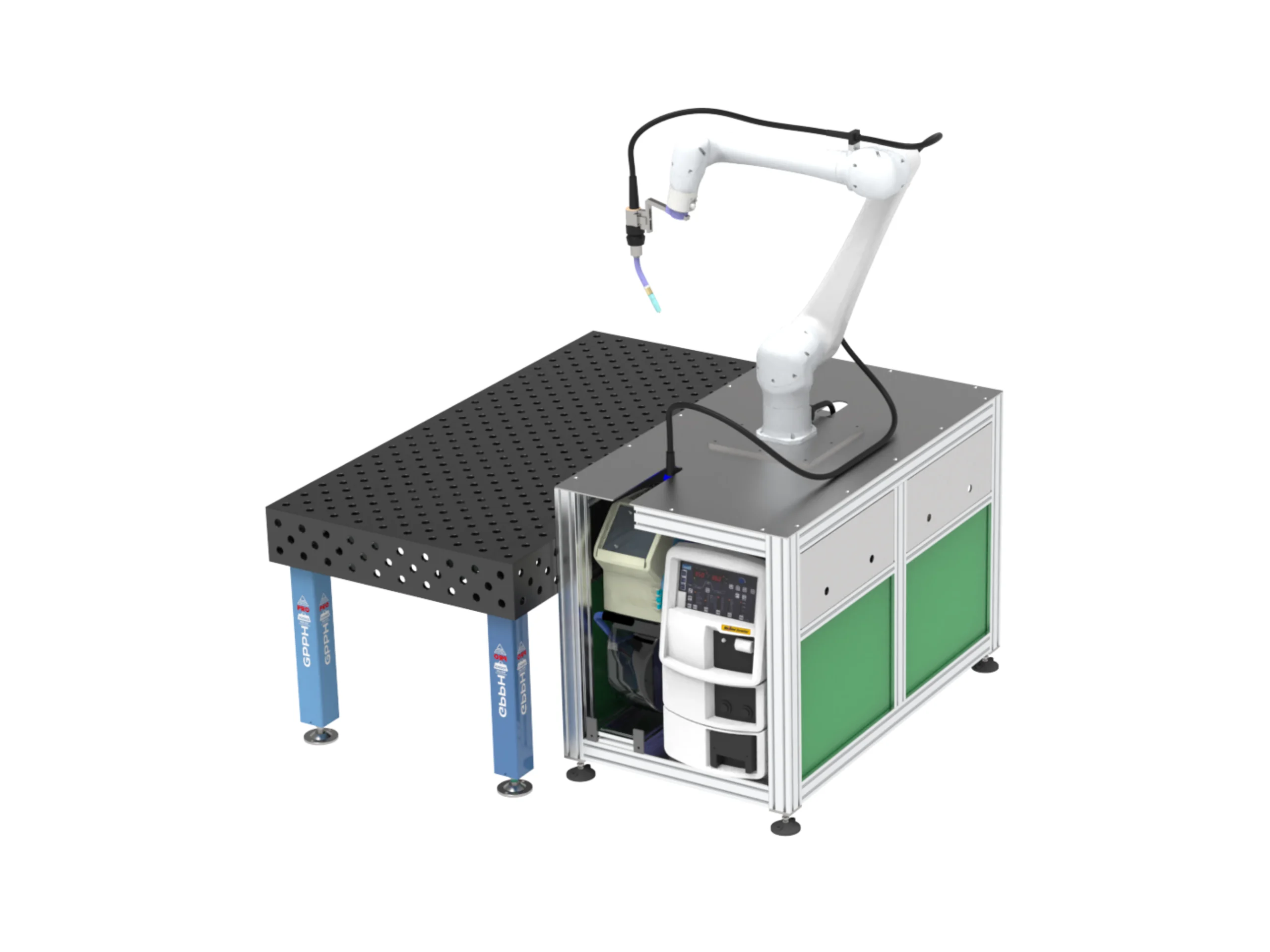

The Autoa-CoWeld Single Station gives one OTC FD-VC8 cobot two places to weld: its own 880 x 1500 mm weld station and one Autoa WeldBase table measuring 2000 x 1000 mm. The table gives your operator a dedicated space to load and unload parts. While the robot welds, your operator preps the next job. It is the mid-range configuration in the Autoa-CoWeld range.

Built For Growing Workshops.

Choose the Single Station when your volumes are growing or your parts have outgrown the robot’s own weld station. Put larger parts on the WeldBase table and keep small parts and one-offs on the weld station. Add the optional castors if you want to move the station around the workshop. Need more capacity later? The Autoa-CoWeld Dual Station adds a second WeldBase table.

What Is In The Cell.

Each cell runs an OTC P502L welding power source, an OTC RT3500L air cooled torch and an OTC CM Series integrated wire feeder. Add the Autoa ClearArc on-gun fume extraction torch to capture fume at the source.

Three Ways to Program.

The Single Station can be programmed three ways. Use drag and drop teaching for simple parts. Use block teaching to build a program step by step. Use AutoaWeld software when you want the robot programming automated for you. See the Autoa-CoWeld collaborative robot welder, or browse all of our robotic welding solutions.

Autoa-CoWeld Single Station.

Download Specifications Sheet

Robot
OTC FD-VC8 Collaborative Robot Arm


Power Source
OTC P502L Welding Power Source


Welding Torch & Wire Feeder
OTC RT3500L Air Cooled Welding Torch
Autoa ClearArc On-Gun Fume Extraction Torch (optional)
OTC CM Series Integrated Wire Feeder


Table
Autoa Weld Station 880x1500mm
1x Autoa WeldBase Welding Table 2000x1000mm
Castors/Wheels Mobile Station (optional)


Programming

Drag and Drop Teaching
Intuitive Block Teaching
AutoaWeld Software

Autoa-CoWeld Single Station Frequently Asked Questions.

An OTC FD-VC8 collaborative robot arm, OTC P502L welding power source, OTC RT3500L torch, OTC CM Series wire feeder, one Autoa weld station and one Autoa WeldBase welding table.

Yes. Autoa delivers the cell fully configured with everything you need to start welding.

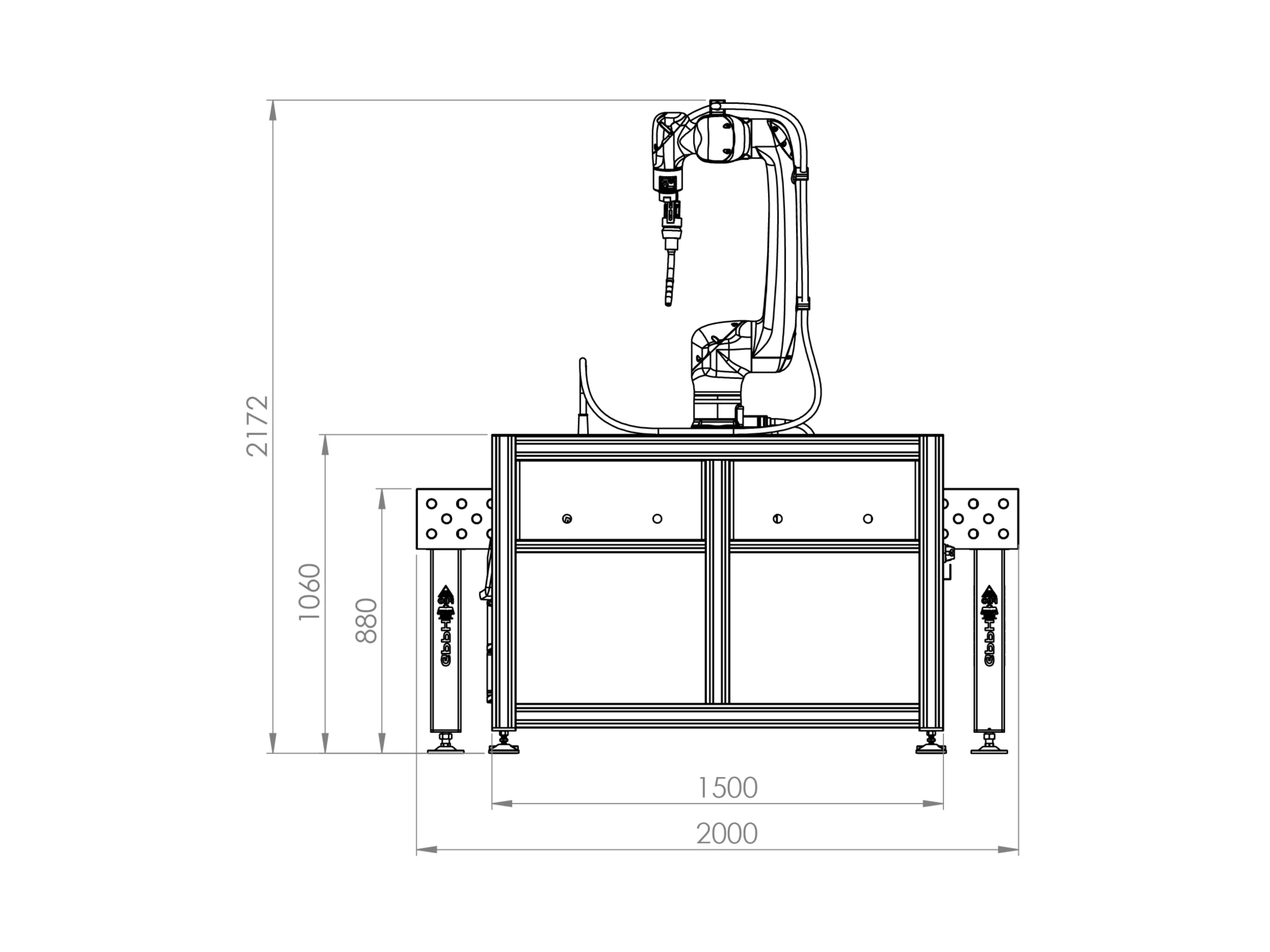

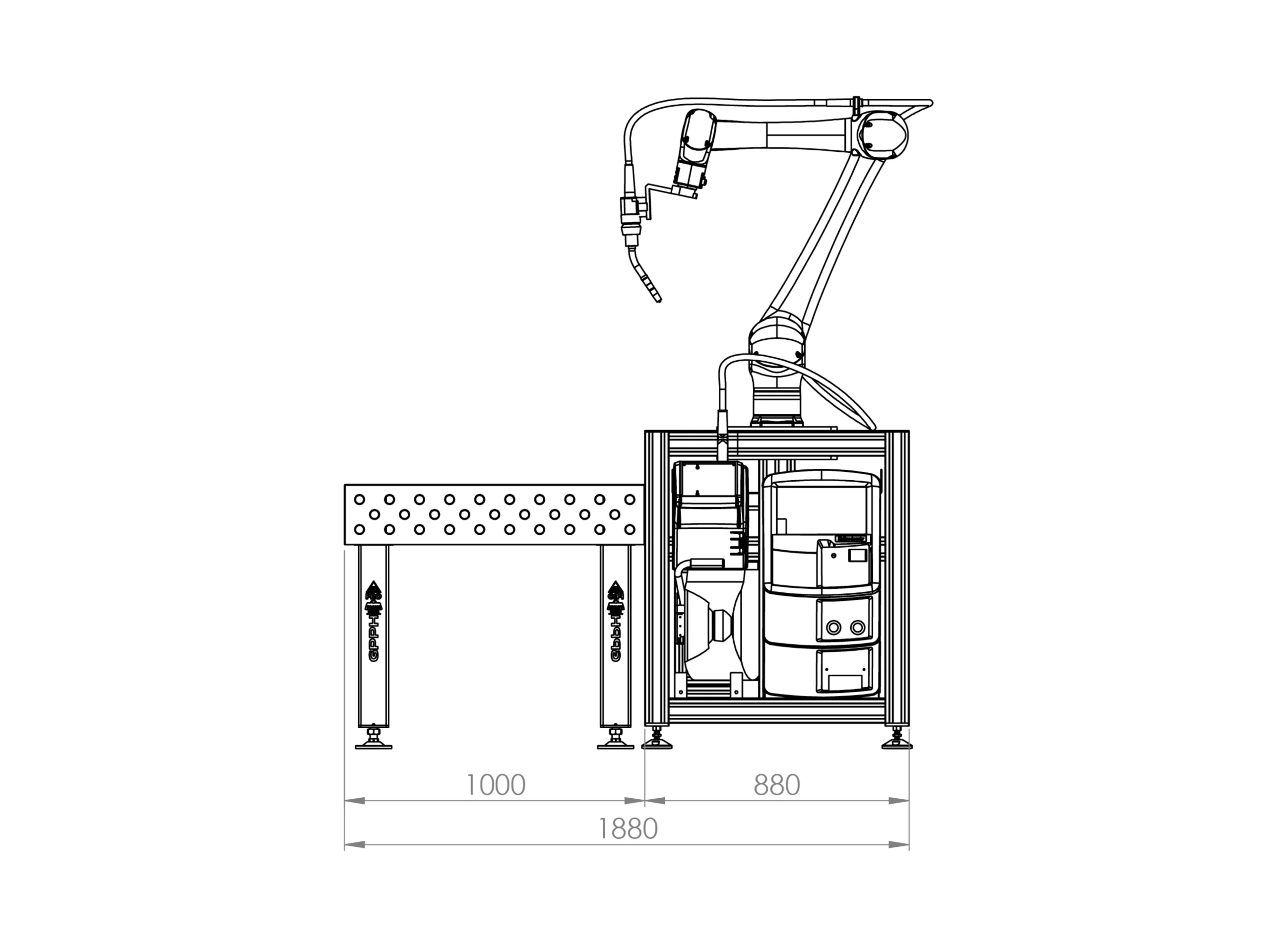

The weld station measures 880 x 1500 mm and the WeldBase table measures 2000 x 1000 mm. Download the specifications sheet for the full cell footprint.

Yes. The Autoa ClearArc on-gun fume extraction torch is available as an option.

The Single Station has one WeldBase table. The Dual Station has two, so one table can be loaded while the robot welds at the other.

Operators learn quickly. Drag and drop teaching and block teaching are both visual. More questions? Read our frequently asked questions.
