Standard Arc-Welding Systems

Yaskawa ArcWorld CS V2-500 – 1200mm

Description

The ArcWorld CS V2-500 is a compact robotic welding solution designed to deliver precision and efficiency in arc welding applications. With a 1200mm reach, it provides a versatile workspace for handling various metalwork tasks, ideal for industries requiring high-quality, repeatable welds in tight spaces. This cell combines advanced robotic arms with easy-to-use controls, ensuring quick setup and consistent performance while enhancing operator safety.

Yaskawa ArcWorld CS

Payload: 500kg

Maximum Workpiece Size: 1200mm ⌀ 900mm

Welding Capacity: 100% duty cycle 350A; 60% duty cycle 460A

Torque Rotating Axis: dynamic 1177Nm; static 941 Nm

Torque Index Axis: dyamic 1772Nm; static 1417 Nm

Motor Power: rotating axis 1.3 kW; index axis 3.0 kW

Standard Arc-Welding Systems

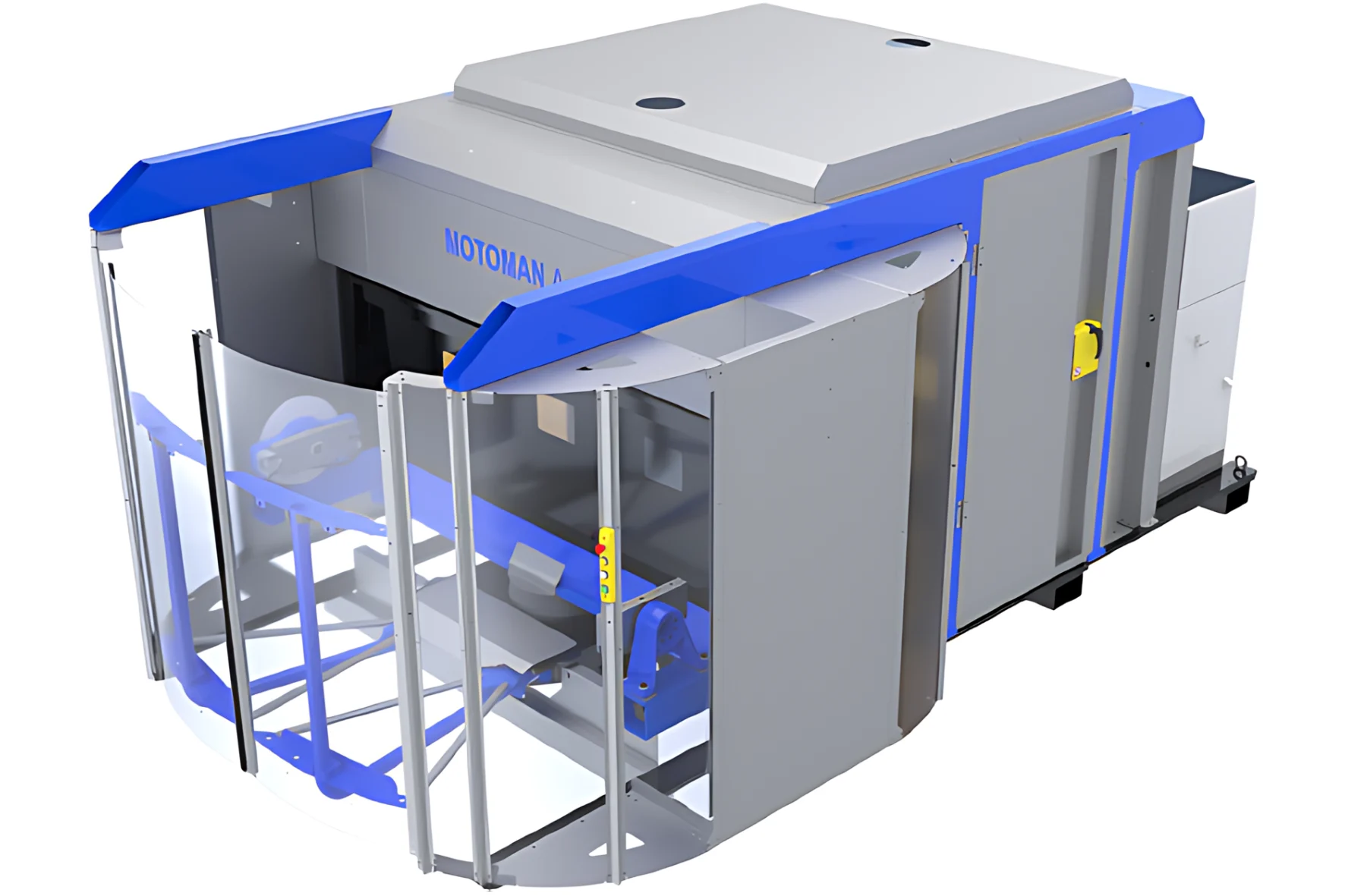

Yaskawa ArcWorld CS V2-500 – 1950mm

Description

Payload: 500kg

Maximum Workpiece Size: 1950mm ⌀ 1000mm

Welding Capacity: 100% duty cycle 350A; 60% duty cycle 460A

Torque Rotating Axis: dynamic 1177Nm; static 941 Nm

Torque Index Axis: dyamic 2251Nm; static 1800 Nm

Motor Power: rotating axis 1.3 kW; index axis 3.7 kW

Standard Arc-Welding Systems

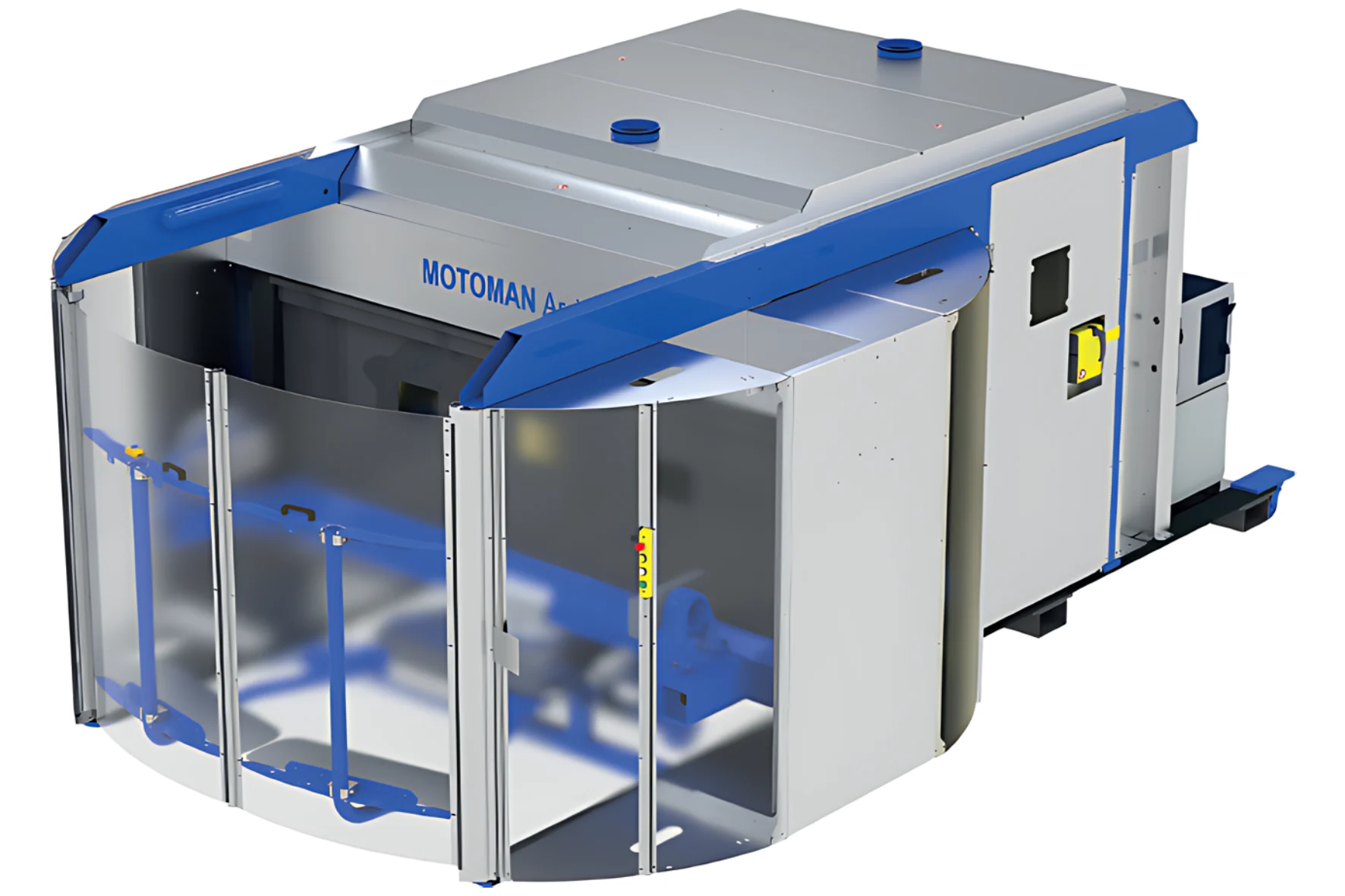

Yaskawa ArcWorld CS V2-500 – 2300mm

Description

The ArcWorld CS V2-500 with a 2300mm reach is engineered for heavy-duty welding applications that require both extensive reach and precision. With its expanded workspace, this robotic welding cell efficiently handles large, complex workpieces while ensuring consistent, high-quality welds. Ideal for industries working with substantial metal assemblies, the system combines advanced robotics and user-friendly controls to streamline setup, boost productivity, and maintain robust operator safety throughout intensive welding operations.

Payload: 500kg

Maximum Workpiece Size: 2300mm ⌀ 1200mm

Welding Capacity: 100% duty cycle 350A; 60% duty cycle 460A

Torque Rotating Axis: dynamic 1177Nm; static 941 Nm

Torque Index Axis: dyamic 2251Nm; static 1800 Nm

Motor Power: rotating axis 1.3 kW; index axis 3.7 kW

Standard Arc-Welding Systems

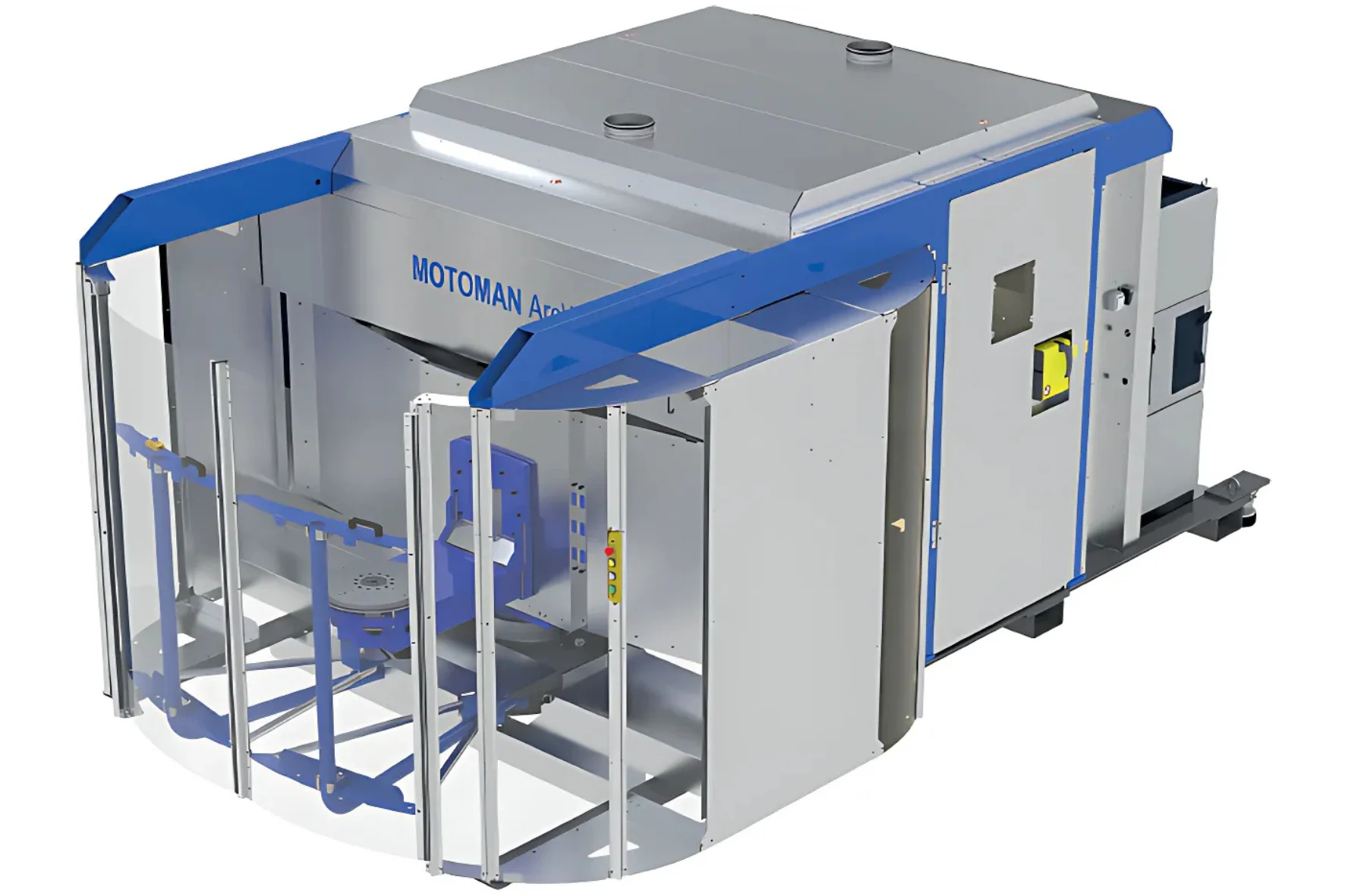

Yaskawa ArcWorld CS V2TL-500 – 1200mm

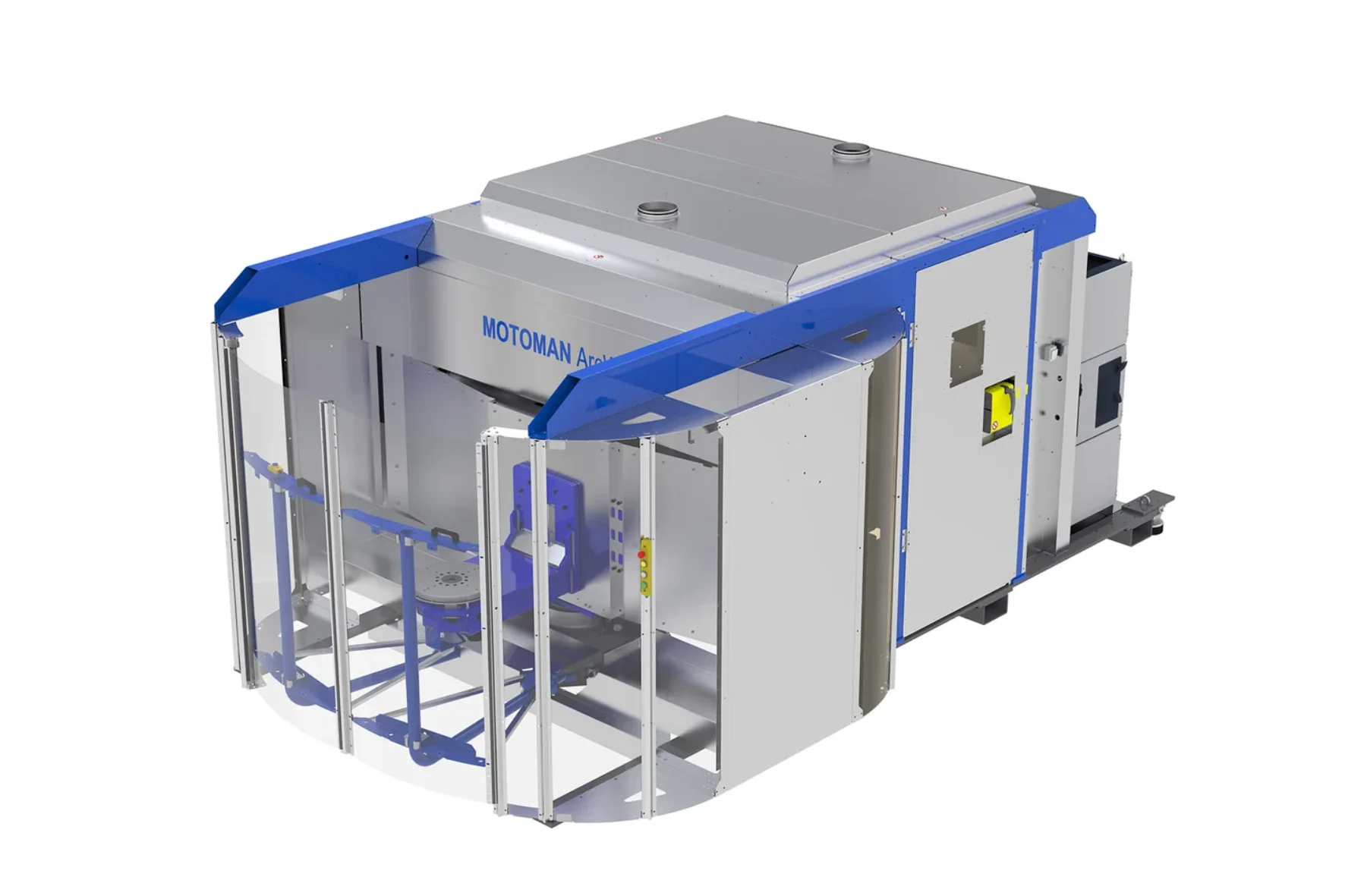

ArcWorld CS

Description

The ArcWorld CS integrates the robot, positioner, controller, and power supply on a single platform, allowing for easy relocation and quick setup. It features a shared workspace for the robot and operator, providing a bright, practical station with materials close by. The cell can also support two robots without increasing its footprint.

Payload: 500kg

Maximum Workpiece Size: 2300mm ⌀ 1200mm

Welding Capacity: 100% duty cycle 350A; 60% duty cycle 460A

Torque Rotating Axis: dynamic 1177Nm; static 941 Nm

Torque Index Axis: dyamic 2251Nm; static 1800 Nm

Motor Power: rotating axis 1.3 kW; index axis 3.7 kW
