Standard Arc-Welding Systems

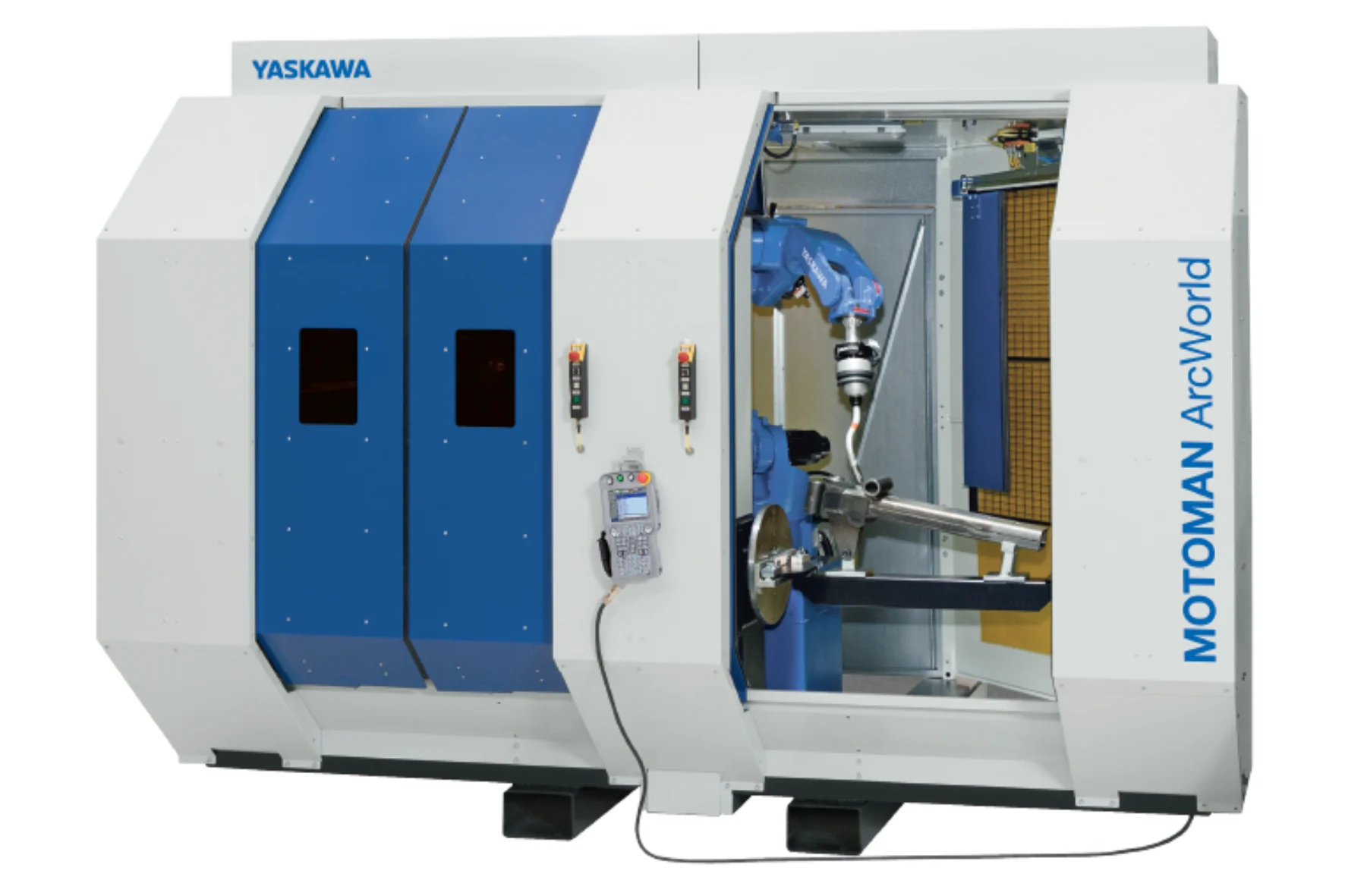

Yaskawa ArcWorld 250/500

Description

Yaskawa ArcWorld is a compact, standard welding cell with two stations designed for small to midsize objects, each equipped with a part positioner. These positioners can either be identical or different, providing flexibility for a range of production needs. The cell is easy to move into position and can be installed within four hours, making it ideal for relocation if production requirements change.

Yaskawa ArcWorld is the latest addition to Yaskawa’s series of robotic welding cells, backed by nearly 30 years of experience in standardized robotic welding solutions.

Controlled axes: 6

Max. payload: 6 kg

Repeat. pos. accuracy: ± 0.08 mm

Max. working range: 1440 mm

Weight: 130 kg

Power supply, average: 1.5 KVA

Mounting options: Floor, wall, ceiling, Positioner: 2 x Fixed table, 2 x Vertical axis, 2 x Horizontal axis, Horizontal and vertical axis. Horizontal axis and fixed table, Vertical axis and fixed table

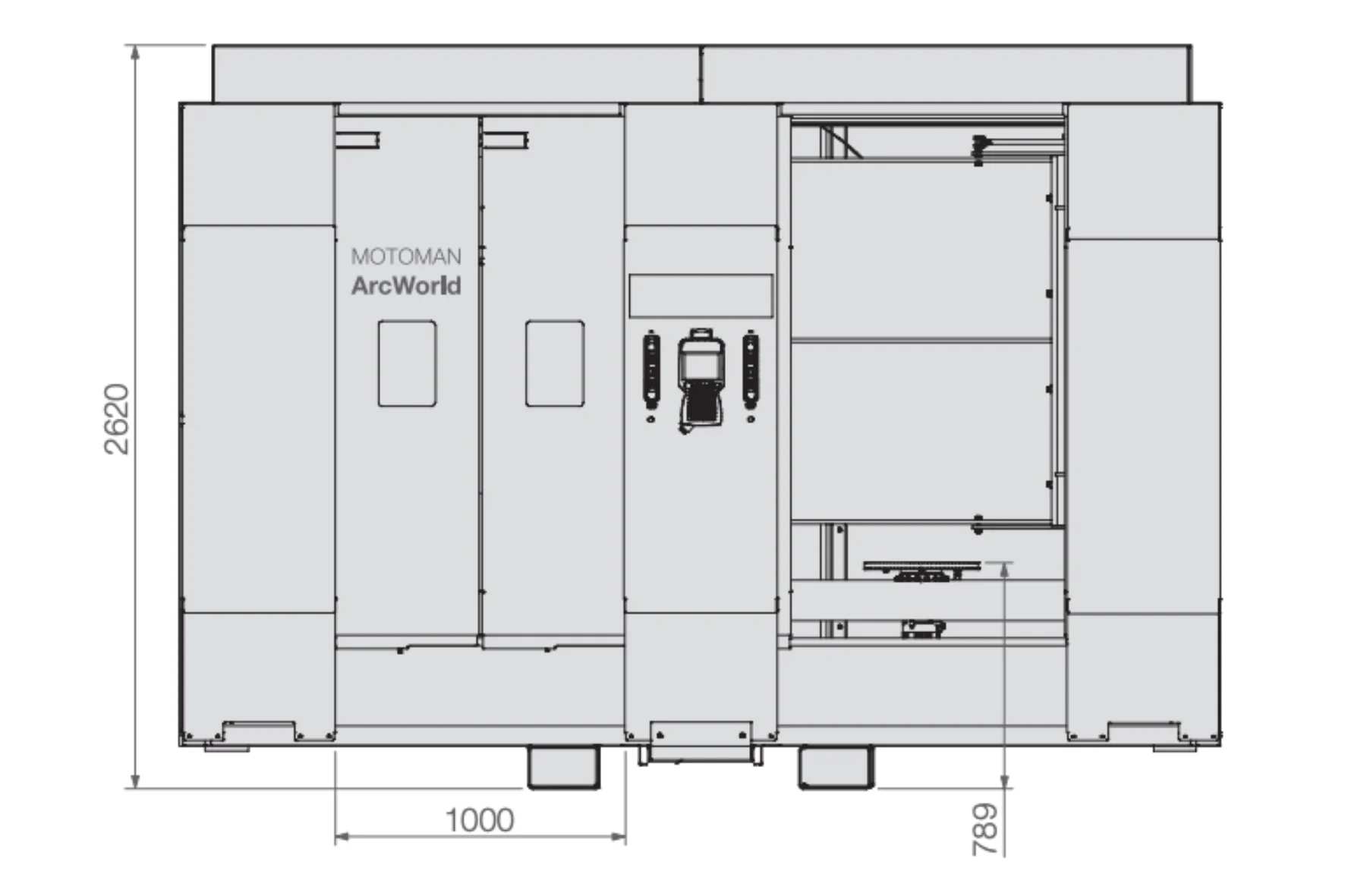

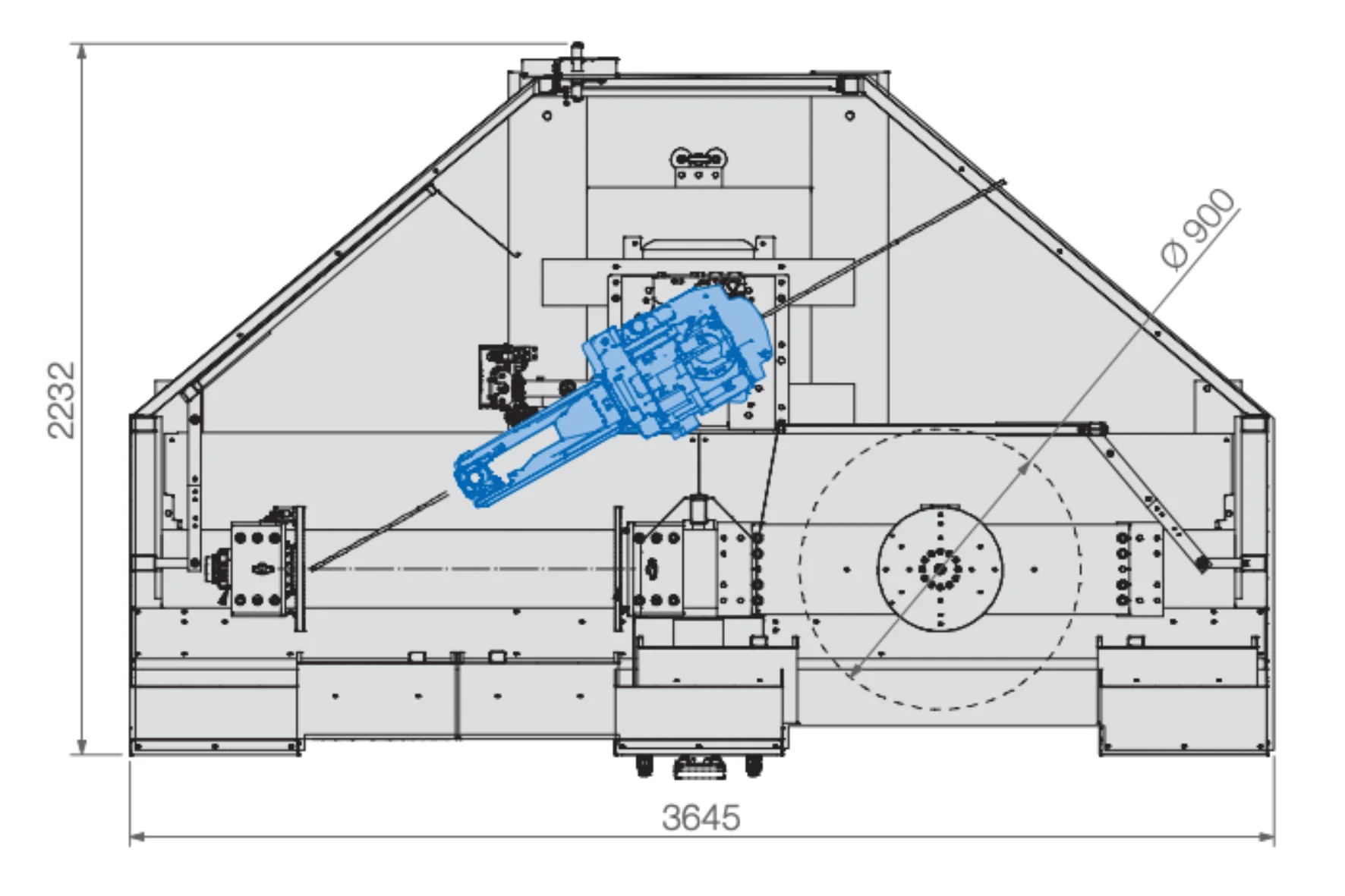

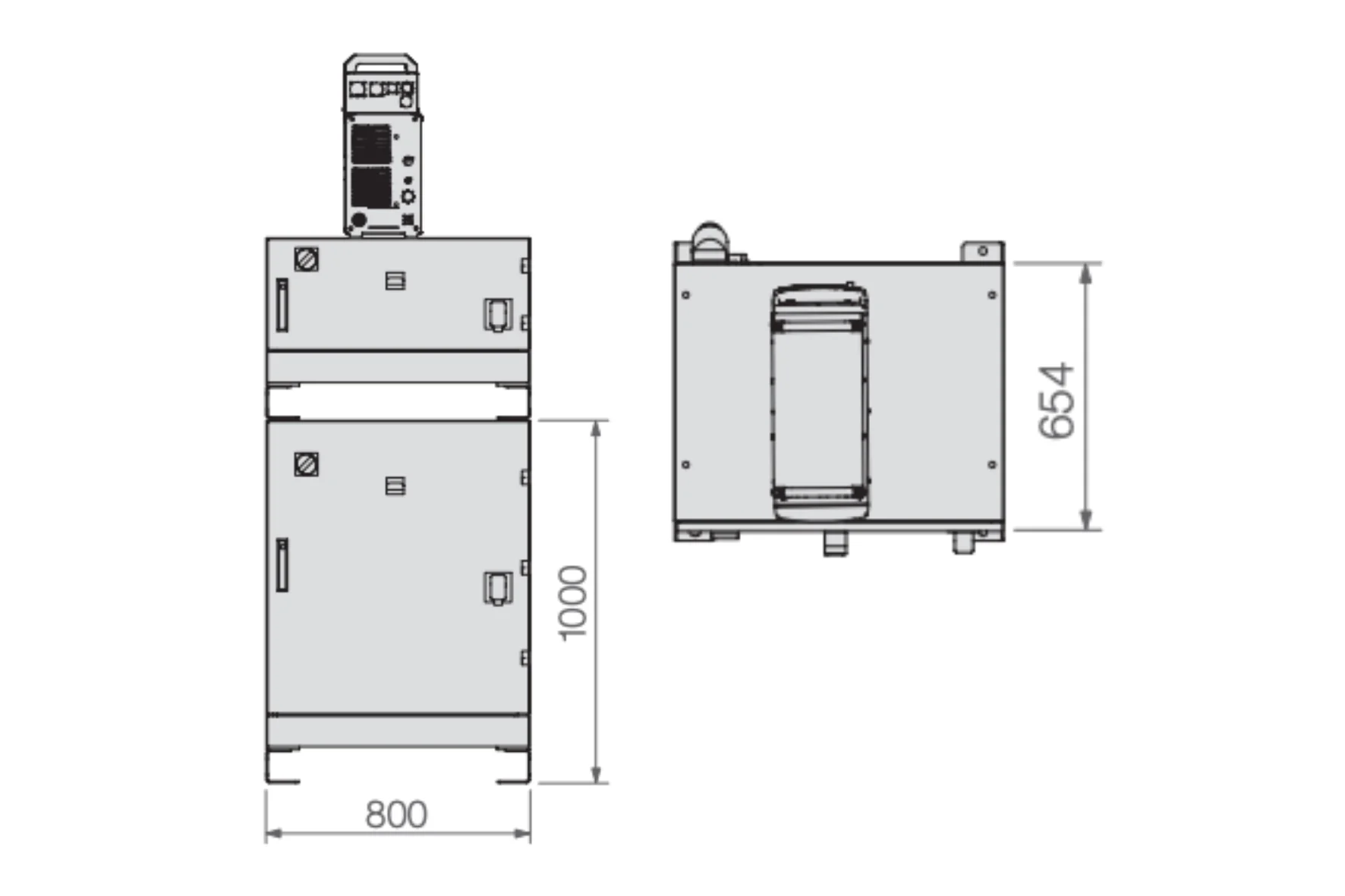

Cell Dimensions
