Compact Series

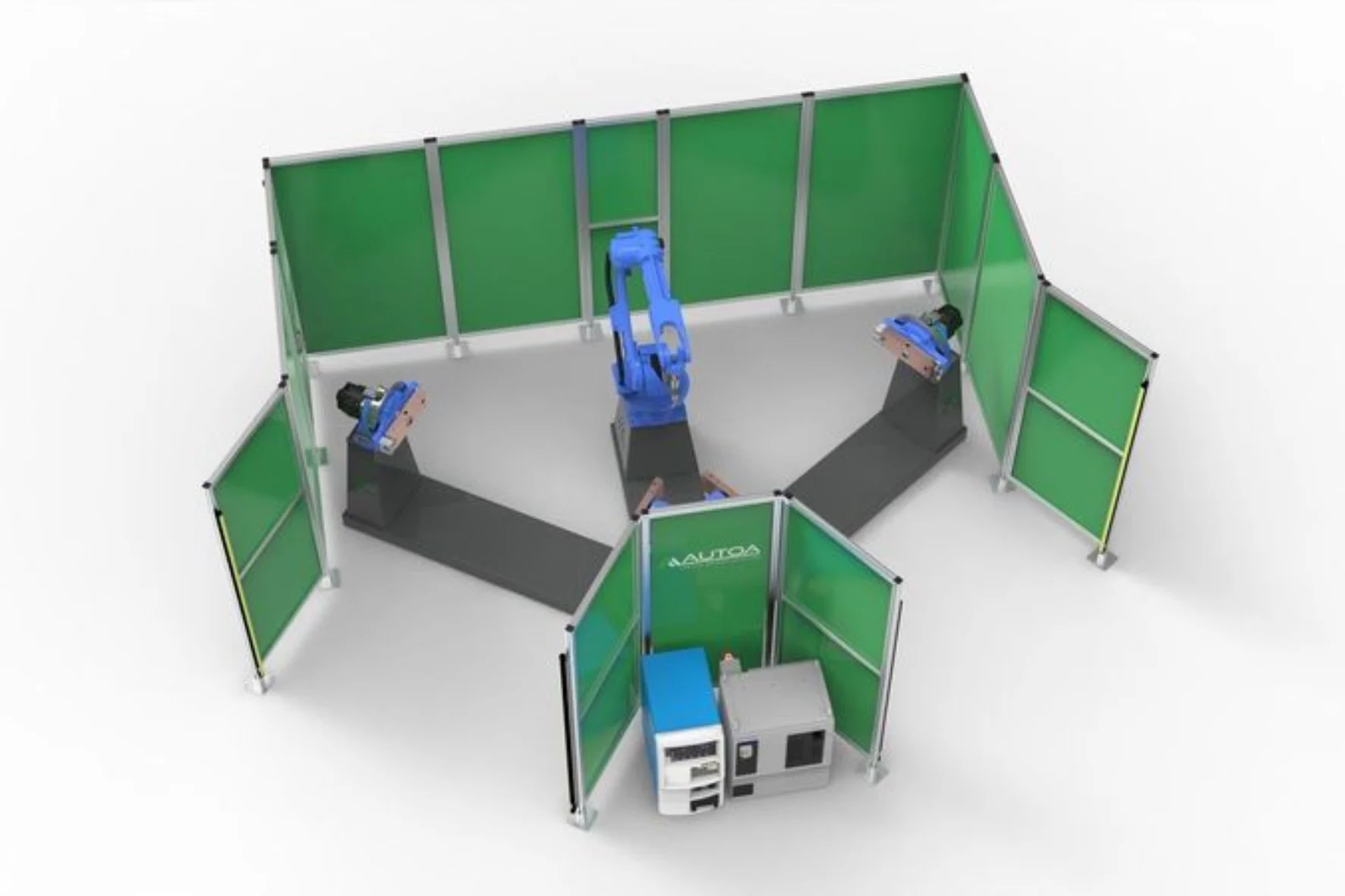

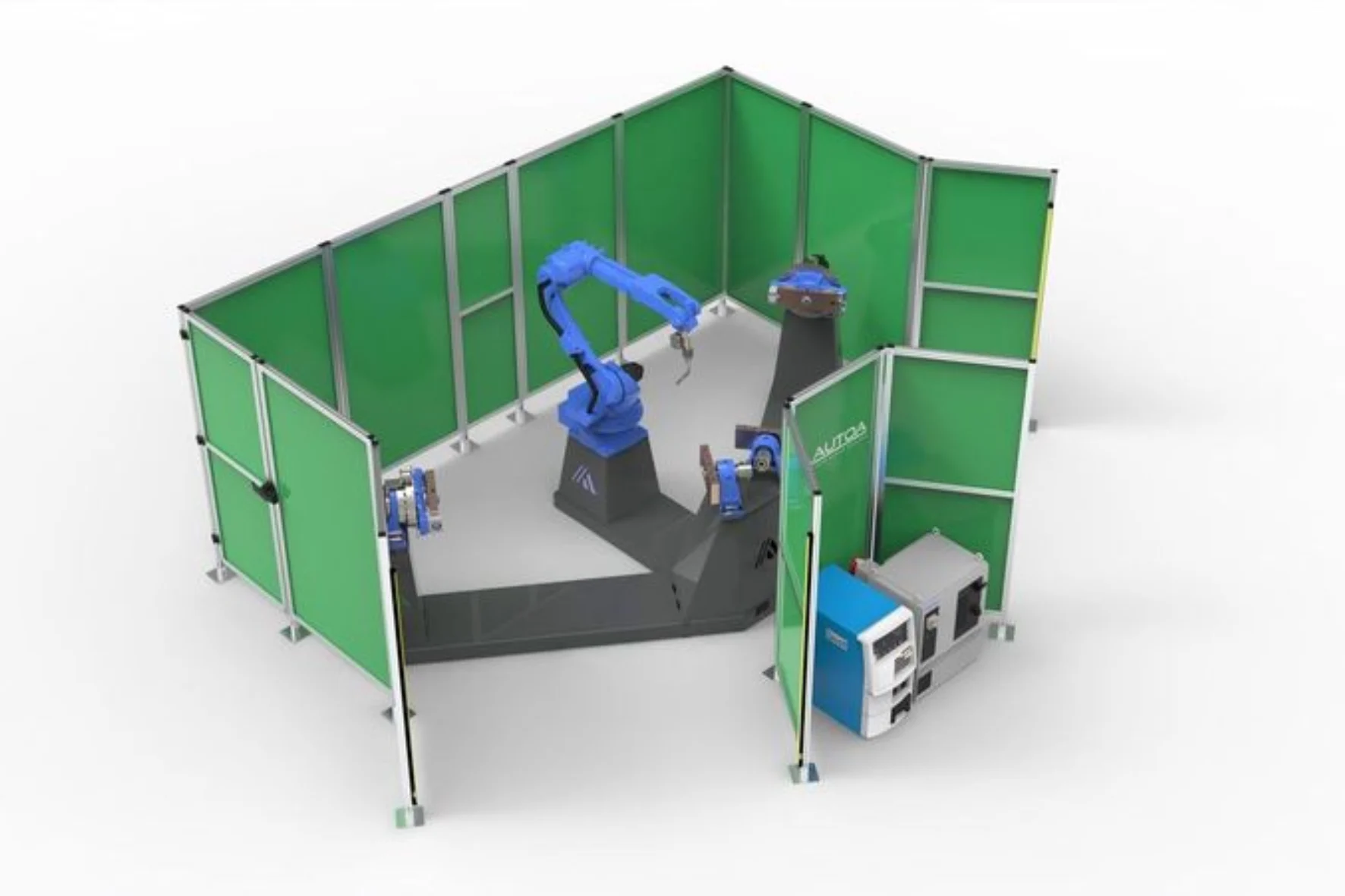

Y-1600 Robot Welding Cell

The Autoa Y-1600 robot welding cell is a highly efficient dual-workstation system featuring positioners (head and tailstock), enabling manufacturers to process different parts in each workstation or double up production on the same part without requiring additional floor space. With its two-station setup, the Y-1600 allows for quick changeovers, facilitating a higher mix of part variations and making it a cost-effective solution for manufacturers needing to weld multiple parts.

Mechanically robust and well-suited for manufacturing small to medium-sized repetitive products, such as those in the agriculture and furniture industries, the Y-1600 maximizes uptime for higher volume runs, enhancing both speed and quality. Occupying only a typical single-station space, this compact workcell is ideal for manufacturers with limited floor space.

By adopting the Y-1600, you can seamlessly integrate robotics into your welding processes and achieve greater productivity, efficiency, and quality in your manufacturing operations.

Equipment:

  • OTC Daihen B6L Welding Robot with 2000mm reach.
  • OTC Daihen FD19 Robot Controller and Teach Pendant.
  • OTC Welbee P502L 500amp Welding Power Source.
  • 350amp Air Cooled Welding Torch and Wire Feeder.
  • 1PC1000 Single Axis Positioner.
  • Safety Guarding – standard ISO 10218-1.

Design:

  • Two-station cell that fits within the space of a typical single-station cell.
  • Modular cell design facilitates future expansion.
  • Controller and power source in external enclosure.
  • Clean design with protected cables and floor fixings.
  • Compact footprint in Autoa cell standard range.
  • Functional Safety Unit ensures improved safety functions with integrated Safety Controller.

Details:

  • Welding Jig: 1600 x 850mm.
  • Cell Dimensions: 3983 x 5644 x 2005mm.
  • Power Supply: 32A 3ph 400V + Neutral.
  • Positioner Capacity: 500kg (1000kg option available).

Cell Dimensions

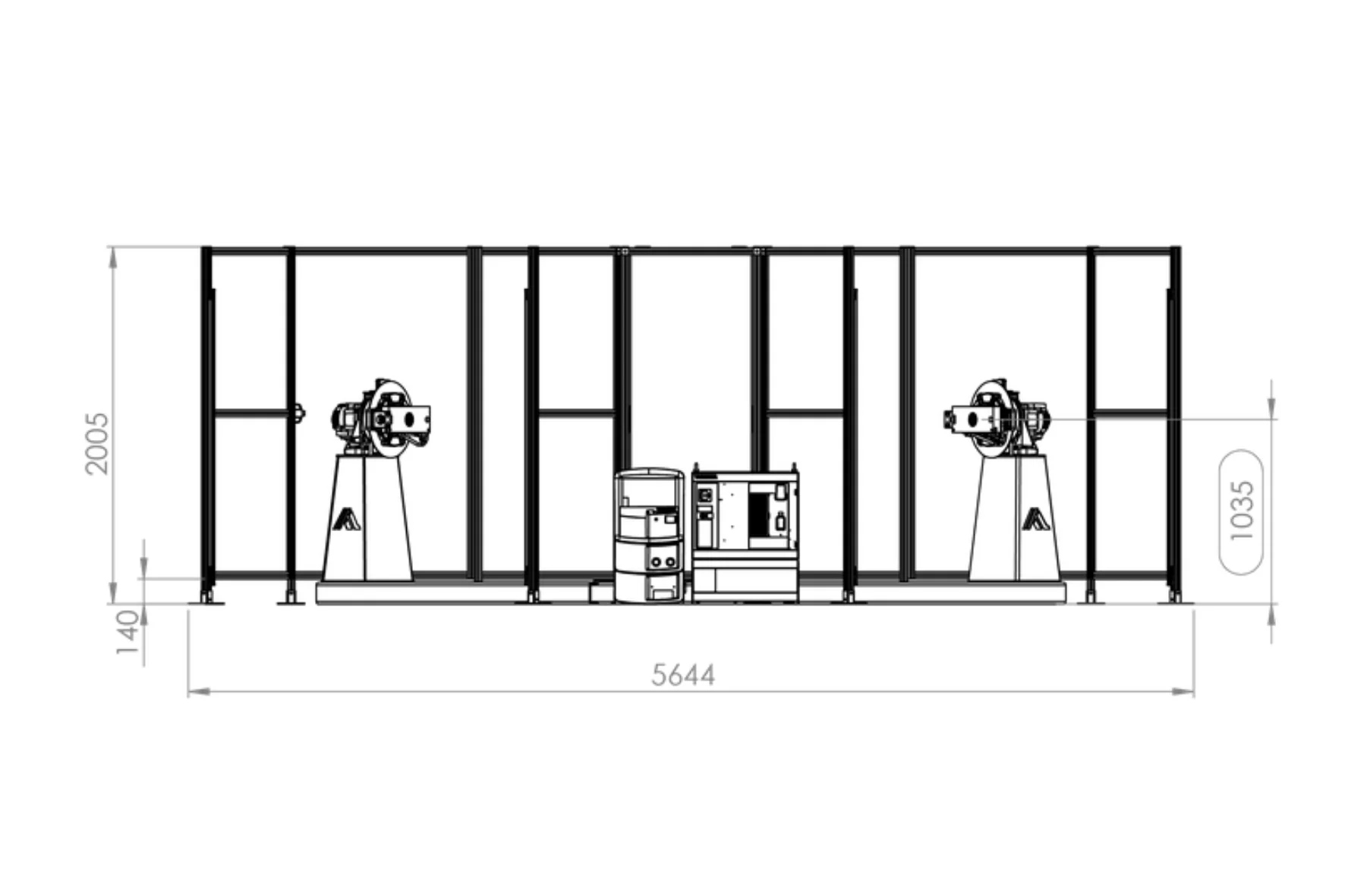

Autoa Y-1600 Robot Welding Cell Dimensions

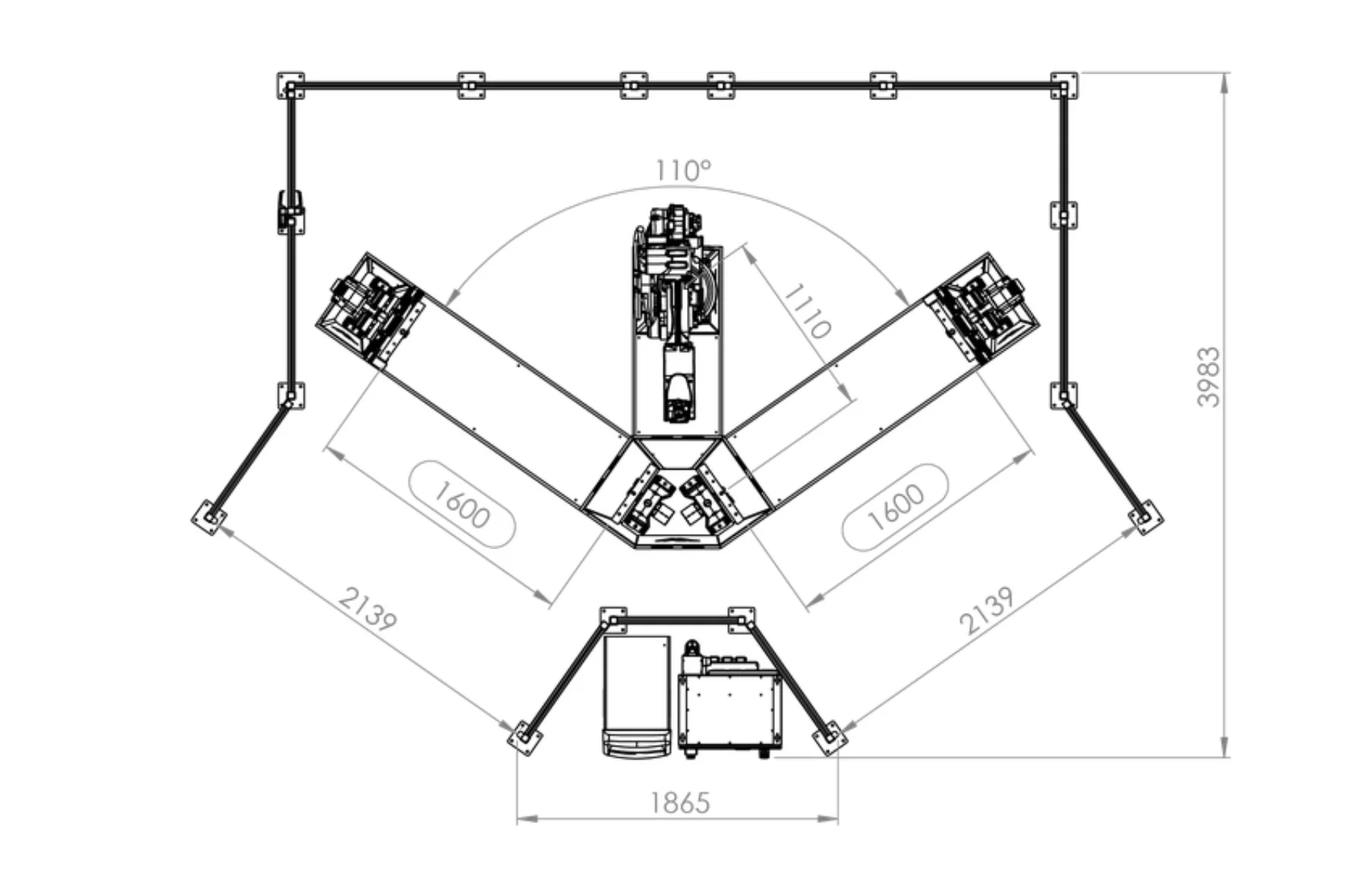

Autoa Y-1600 Robot Welding Cell Dimensions

Y-1600 Robot Welding Cell

Featured Equipment

Offline Programming

AutoaWeld Software

Our revolutionary AI path planning software sets us apart. Powered by advanced algorithms, our software empowers robots to create intelligent, collision-free welding paths, minimizing cycle times and enhancing quality. This automation eliminates human errors, ensuring consistent and repeatable results even in challenging scenarios.

AutoaWeld Programming Software

Y-1600 Robot Welding Cell

More Information

For more information, please download the Y-1600 flyer, contact us, or book a video call to discuss this Robot Welding cell.
