OTC Daihen 2PF500 Positioner

Description

OTC Daihen Tilt Turn Positioners offer three variations in payload from 300kg to 1000kg. All OTC Daihen positioners are controlled from the standard robot teaching pendant. Positioners are operated independently or synchronized with the robot. High-accuracy operation is made possible by the same AC servo motor and non-backlash reduction gear as our robots. The sleek, robust design allows for easy access and quick part removal.

Max Payload Capacity: 500kg

Rotating Speed: 2.8 rad/s {162° /s}

Tilting Speed: 1.5 rad/s {84° /s}

Rotating Torque: 392 N . M

Tilting Torque: 1347 N . M

Position Repeatability: ~0.08 mm (Position at R250mm)

Stop Position: Random

Weight: 260kg

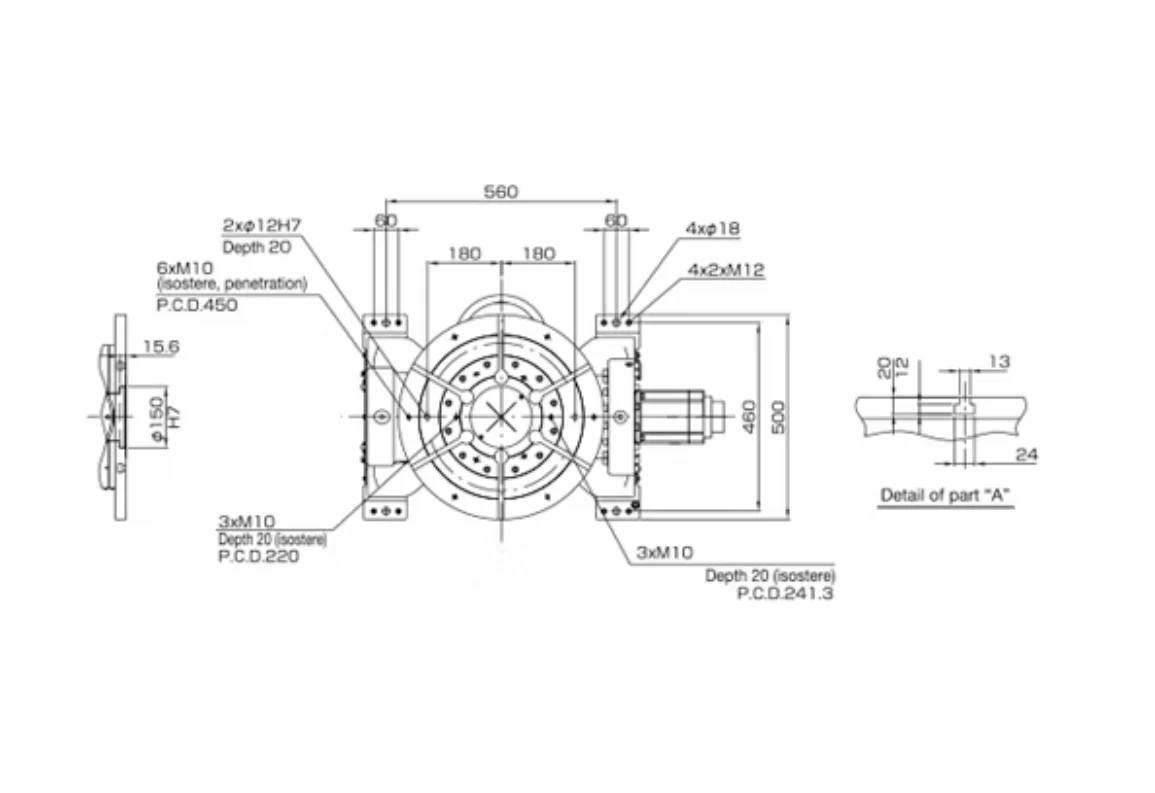

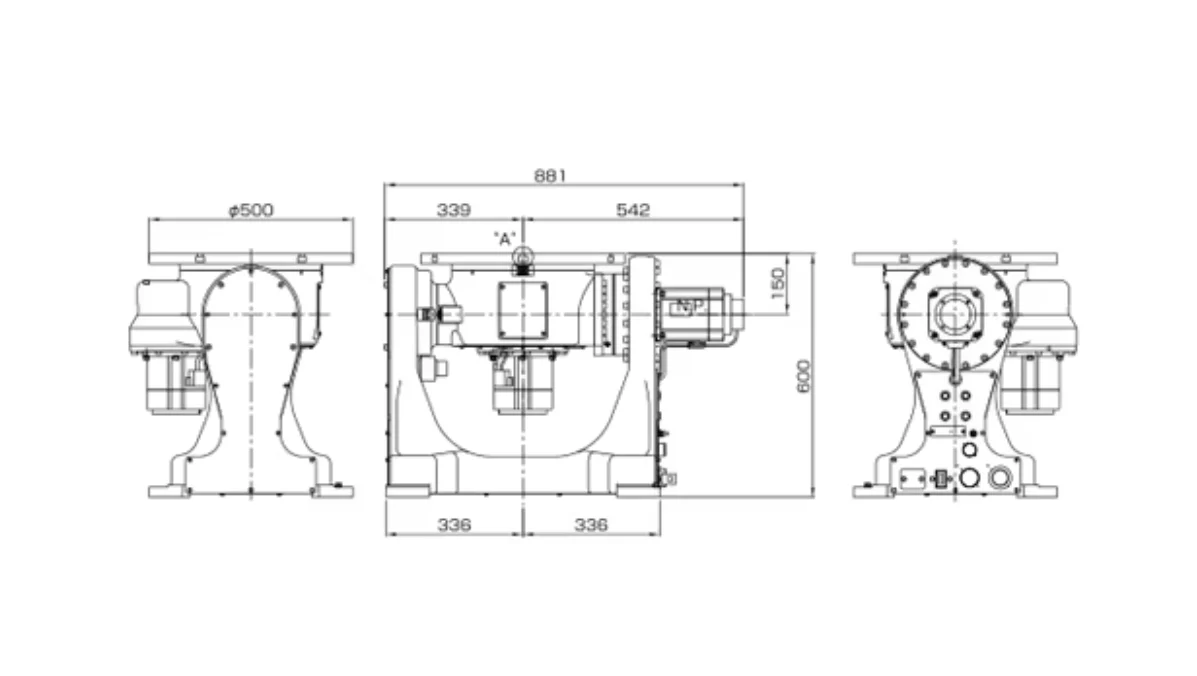

Working Envelope

OTC Daihen 2PF500 Positioner
OTC Daihen 2PF500 Positioner

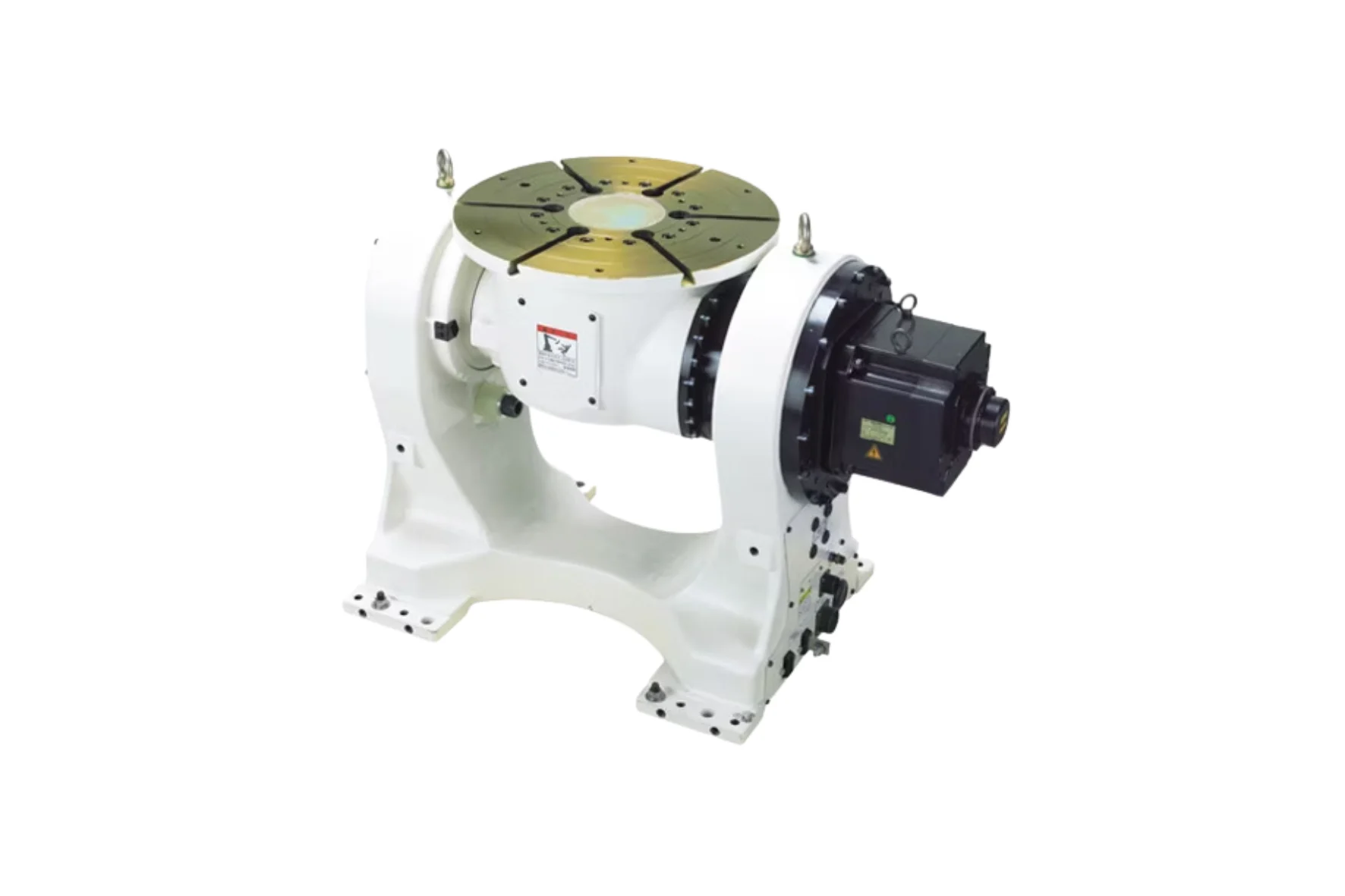

OTC DAIHEN 2PF500 Positioner
