Description

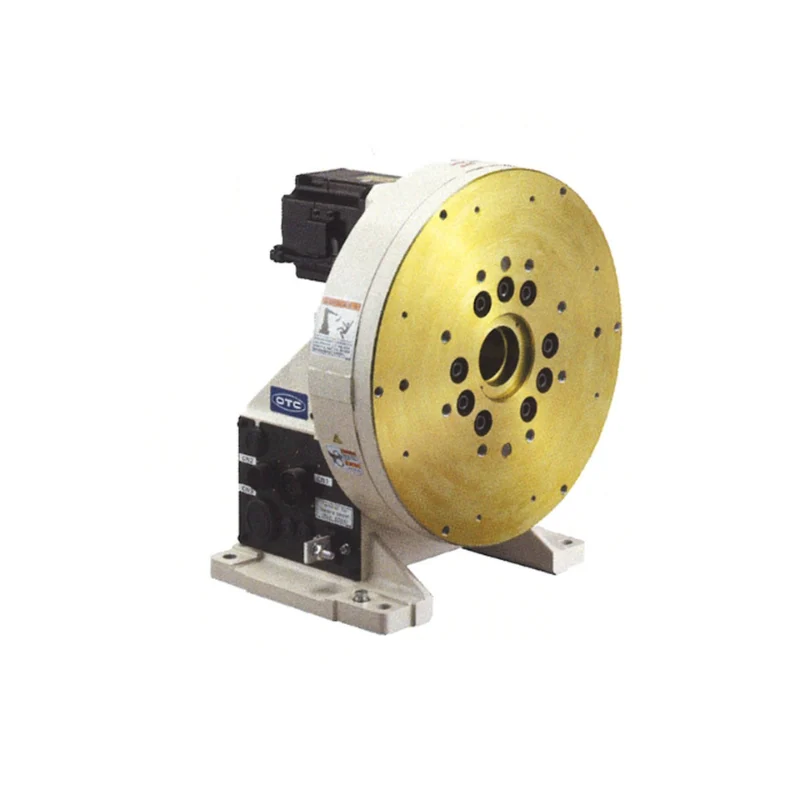

OTC Daihen External Axis Positioner AII-1PC1000

High-speed motion increases production efficiency

Faster

Increasing productivity due to faster speed, 120 degrees per second (1PC500), 72 degrees per second (1PC1000)

Accurate

Adopting a Non-Backrush mechanism for high accuracy (Position repeatability +/-1.0 mm)

Durable

A simple drive system can reduce the risk of failure.

Easy Installation

Designed for compact, lightweight and easy installation.

Max Allowable Load: 1000kg

Max Eccentricity of Center of Gravity: 110mm (loading capacity=1000kg)

Max Height of Center of Gravity: 600mm (loading capacity = 1000kg)

Rotation Speed: 12min-1 | 1.3rad/sec

Rotation Range: +/-370°

Allowable Moment: 1078N.m

Allowable Moment of Inertia: 37.4kg.m2 * 2

Drive System: AC servo motor 1.2 kW

Rotation Axis Repeatability: +/-0.1mm (position at R300)

Position Feedback: Absolute Encoder

Weight: 193kg (with rotary joint: 197kg)

Allowable Welding Current: 500A; Rated duty cycle 60%

Installation Type: Floor installation

Grounding Method: Exclusive grounding equivalent to Class D or higher grounding

Ambient Temperature / Humidity: 0~45°C 20~80% (no condensation)

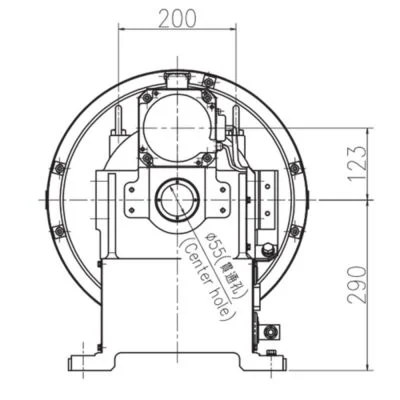

Working Envelope
