H Series

H-2800 Robot Welding Cell

Introducing the Autoa H-2800 robot welding cell, the ultimate heavy-duty solution for engineers handling high volumes, maximizing productivity with its dual-station capability. Operators can seamlessly prepare work on station A while the robot welds on station B, ensuring continuous workflow efficiency.

Tailored for industries requiring robust welding capabilities, such as Ute accessories, digger attachments, tow bars, and smaller sub-assemblies, the H-2800 boasts dual servo-controlled positioners and an H-frame design, delivering unmatched performance in heavy-deposition welding and large parts fabrication.

Despite its power, the H-2800 prioritizes safety features and seamless integration, characteristic of our smaller workcells. Equipped with advanced robotic technology and precision welding capabilities, it effortlessly handles even the most challenging welding tasks. Incorporating the H-2800 into your manufacturing processes guarantees maximum productivity, efficiency, and quality, helping you maintain a competitive edge in your industry.

Equipment:

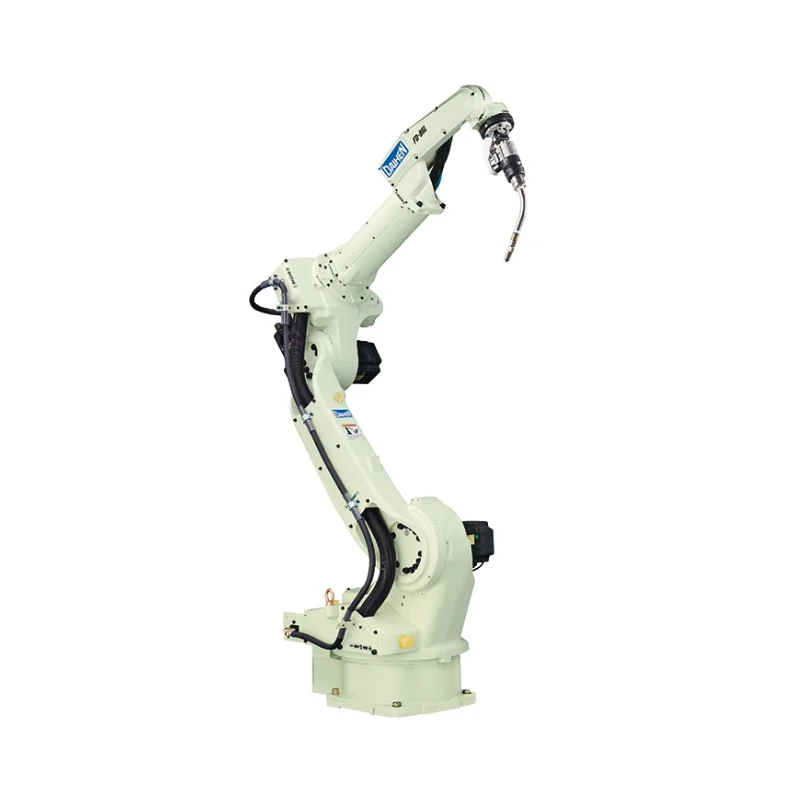

  • OTC Daihen B6L Welding Robot with 2000mm reach.
  • OTC Daihen FD19 Robot Controller and Teach Pendant.
  • OTC Welbee P502L 500amp Welding Power Source.
  • 350amp Air Cooled Welding Torch and Wire Feeder.
  • 1PC1000 Single Axis Positioners x2.
  • Safety Guarding – standard ISO 10218-1.

Design:

  • Two station configuration enables welding on one station while loading/unloading on the other.
  • Modular cell design facilitates future expansion.
  • Controller and power source in external enclosure.
  • Clean design with protected cables and floor fixings.
  • Compact footprint in Autoa cell standard range.
  • Functional Safety Unit ensures improved safety functions with integrated Safety Controller.

Details:

  • Welding Jig: 1600 x 2800mm.
  • Cell Dimensions: 3982 x 7245 x 2005mm.
  • Power Supply: 32A 3ph 400V + Neutral.
  • Positioner Capacity: 1000kg each side.

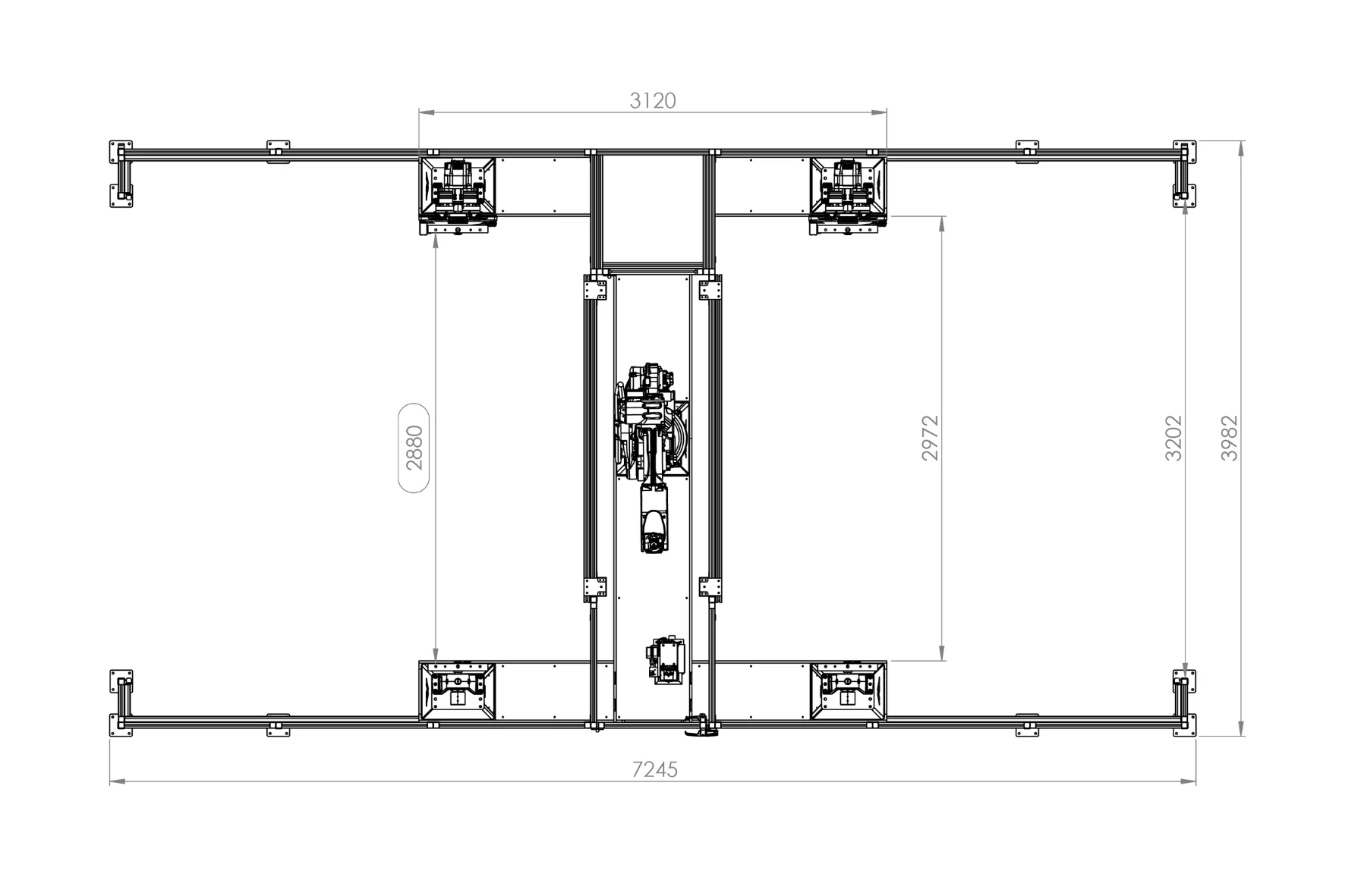

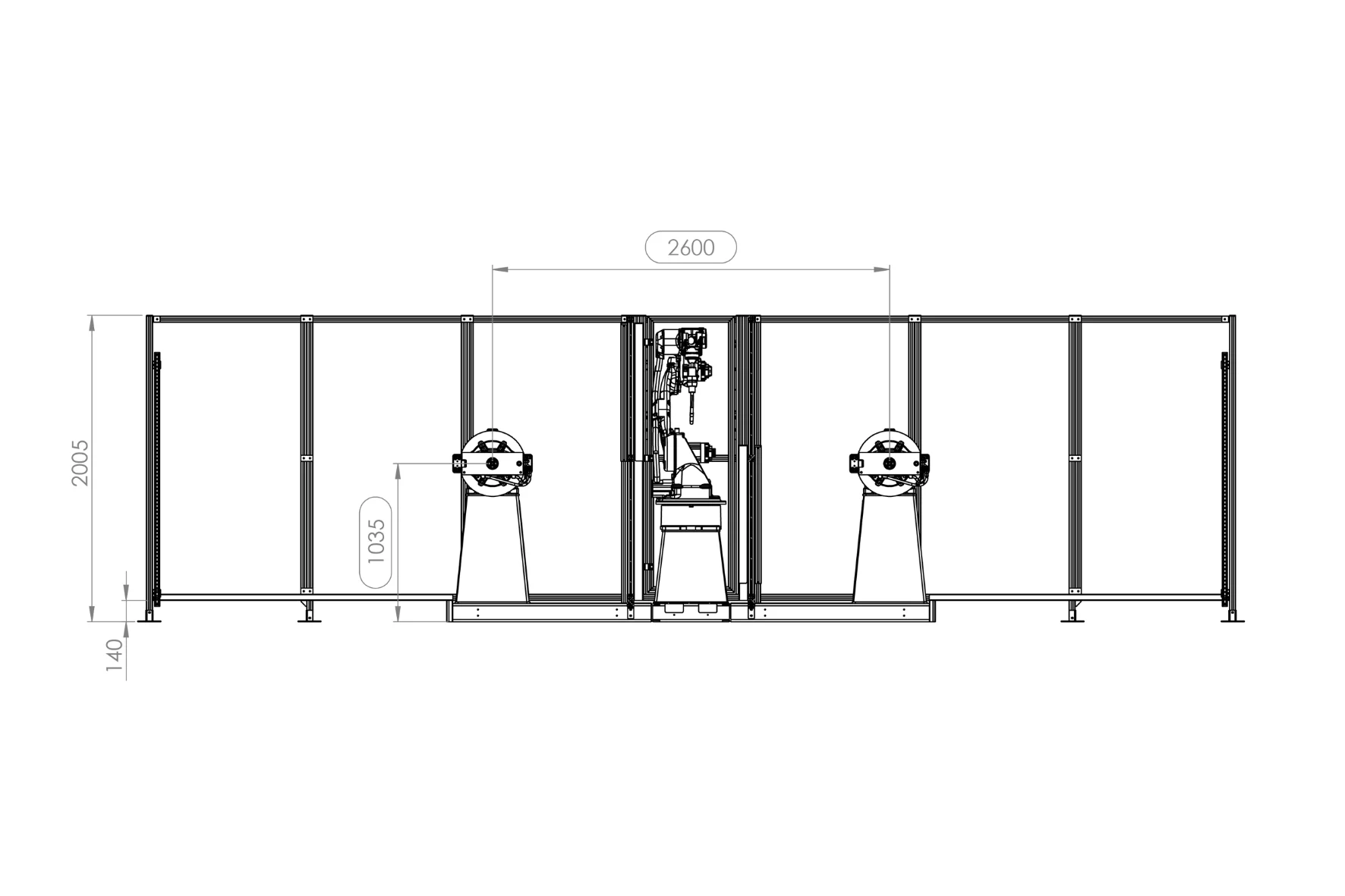

Cell Dimensions

Autoa H-2800 Robot Welding Cell Dimensions
Autoa H-2800 Robot Welding Cell Dimensions

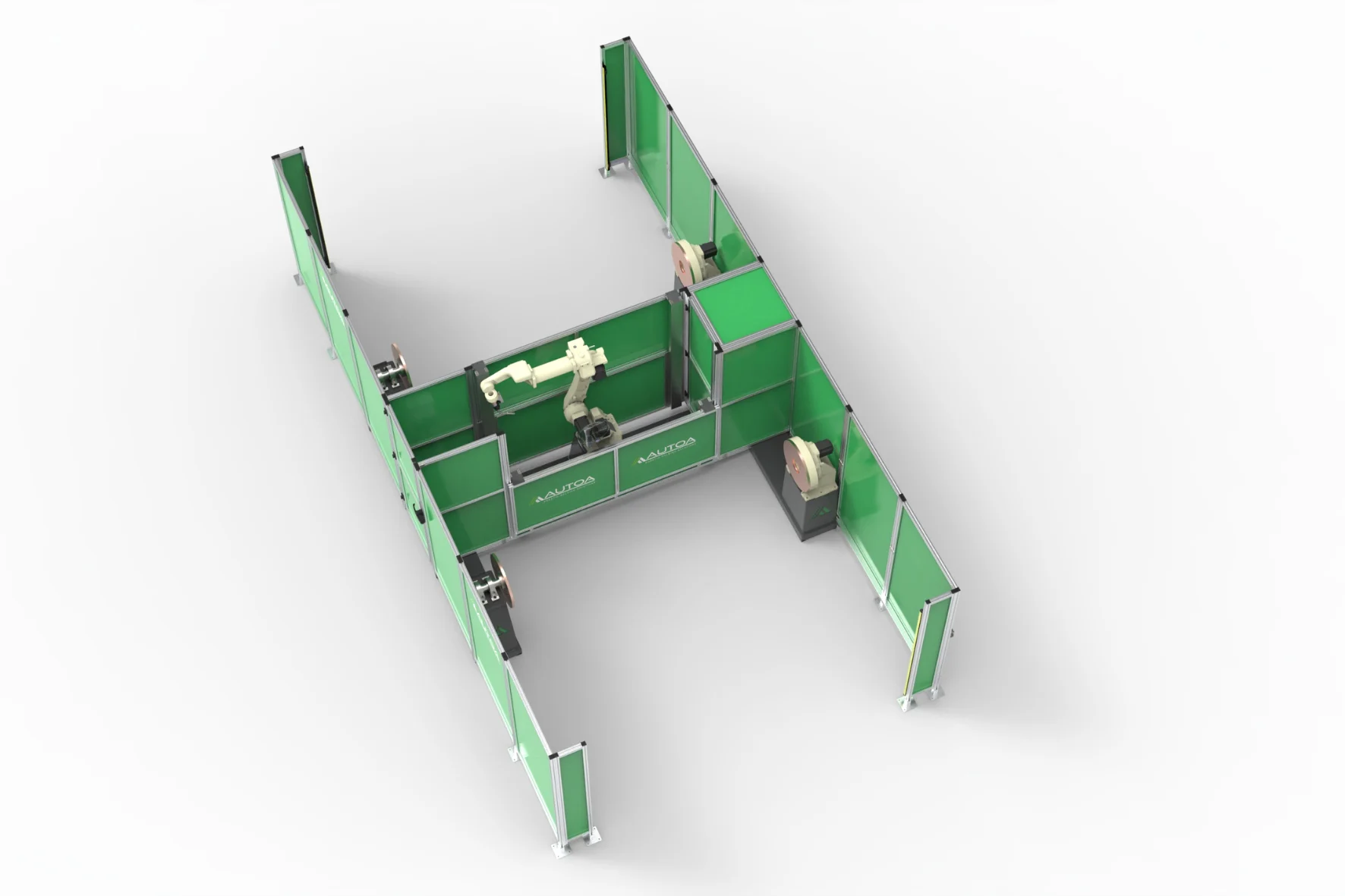

H-2800 Robot WElding cell

Featured Equipment

Offline Programming

AutoaWeld Software

Our revolutionary AI path planning software sets us apart. Powered by advanced algorithms, our software empowers robots to create intelligent, collision-free welding paths, minimizing cycle times and enhancing quality. This automation eliminates human errors, ensuring consistent and repeatable results even in challenging scenarios.

AutoaWeld Programming Software

H-2800 Robot Welding Cell

More Information

For more information, please download the H-2800 flyer, contact us, or book a video call to discuss this Robot Welding cell.
